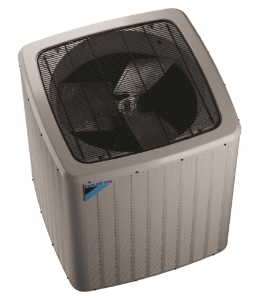

DX14XA1204 Daikin 10 Ton, Light Commercial, 460V-3Ph, 11.2/15.2 EER/IEER Air Conditioner

Daikin DX14XA1204 10 Ton, Light Commercial, 460V-3Ph, 11.2/15.2 EER/IEER Air Conditioner
Manufacturer part number: DX14XA1204

Please Sign In to display product price.

Daikin DX14XA1204 10 Ton, Light Commercial, 11.2/15.2 EER/IEER Air Conditioner, Two Stage Scroll Compressor, 1HP PSC Condenser Fan Motor, 5/8" Liq. 1-3/8" Suct., 35A 460V-3Ph, 35-1/2"W x 35-1/2"D x 41-1/2"H, 345 lbs.

DX3SEA | DX13 | DX14XA
Commercial Air Conditioners

In every Daikin commercial air conditioner, our high performance, high-efficiency compressors operate in tandem with our high-efficiency coil design. This innovative system offers one of the best levels of reliability, durability and efficiency we offer in our commercial packaged air conditioners. The Daikin DX13, DX3SEA and DX14XA commercial air conditioners feature a powder-paint finish over heavy-gauge galvanized steel. This provides premium durability and improved UV protection. The attractive louvered metal guard protects the coil from damage and strengthens the unit. The base pan is elevated to provide excellent water drainage and helps keep the coil away from debris that can collect inside the unit.

Standard Features
• Energy-efficient compressor
• Factory-installed filter drier
• Copper tube/ enhanced aluminum fin coil
• Service valves with sweat connections and easy-access gauge ports
• Contactor with lug connection
• Ground lug connection
• Units meet the performance outlined in Table 6.8.1B of ASHRAE Standard 90.1-2010
• AHRI Certified
• ETL Listed

Cabinet Features
• Innovative louvered sound control top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Nickel Gray powder-paint finish
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories

The warranty on all parts lasts for a period of up to 5 YEARS after the installation date.

Products specifications
Attribute nameAttribute value
Voltage Rating460 V, 3 Phase
Connection TypeSweat
Liquid Line Size5/8 Inch
Nominal Capacity10 ton
Refrigerant TypeR-410A
Sound Level84.7 dBA
TypeAir Conditioner
Fuse Size35 A
Dimensions35-1/2"W x 35-1/2"D x 41-1/2"H
EER Rating11.2
IEER Rating15.2
Compressor StagingTwo Stage
Suction Line Size1-3/8 Inch
