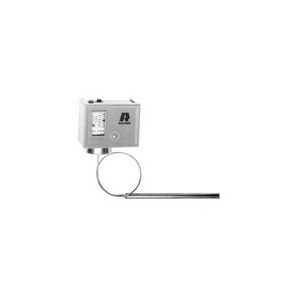

Ranco O10-2054

Ranco® O10 1-Function High Pressure Control, 100 - 400 psi, Opens On Low Pressure, SPST, 24/240 V
SKU: 21713
Manufacturer part number: O10-2054
Manufacturer:

Robertshaw


Please Sign In to display product price.
Ranco® O10 Pressure Control, 1-Function, High Pressure, 100 - 400 psi, 40 - 150 psi Differential, Opens On Low Pressure, SPST Switch, 24/240 V, 1/4 Inch SAE Flare Nut, 36 Inch Capillary Length, Screw Terminal, Universal Mount, NEMA 1, Non-Conductive, Steel Frame, Copper Capillary, Plated

  • Laser welded bellows for extended life
  • Front located captive cover screw
  • Large, easy to read scale plate
  • Super CAP® capillary protection system
  • Screw terminals are raised and fully accessible for easy wiring
  • Affordable solution for controlling head pressure
  • Auto reset
  • Universal mounting and compact design
  • Full load A: 24 FLA at 120/240 V
  • Locked rotor A: 144 LRA at 120/240 V
  • Pilot duty: 144 VA at 24 V; 720 VA at 120/240 V; 125 VA at 241 - 600 V

Standard/Approvals: UL Listed

Application: Fan Cycling Control and R-12, R-22, R-134A, R-502 Refrigerants

Products specifications
Attribute nameAttribute value
Capillary Length36 Inch
Connection Type1/4 Inch SAE Flare Nut
Contact FormSPST, Opens On Low Pressure
Contact Rating24/240 V
Differential40 - 150 psi
Electrical ConnectionScrew Terminal
Enclosure TypeNEMA 1, Non-Conductive
FinishPlated
ManufacturerRobertshaw
MaterialSteel Frame, Copper Capillary
Mounting TypeUniversal
Pressure Range100 - 400 psi
SeriesO10
Type1-Function, High Pressure
