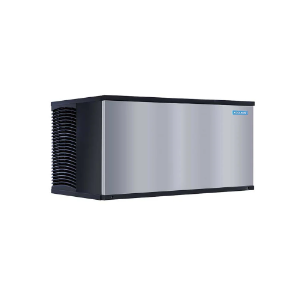

Koolaire KYP1000A-261 Modular Ice Machine, 3⁄8 x 1-⅛ x 7⁄8 Inch Half Kube Ice, 880 lb Per Day, Air Cooled, 30 Inch W
Koolaire Ice Cube Machine
KDP1000A | KYP1000A | KDP1000W | KYP1000W
KP1000 Ice Cube Machine – R290
Produces up to 880 lbs (399 kg) of ice daily. Koolaire by Manitowoc delivers exactly what you need—dependable performance, essential features, and a price that respects your budget. Designed for simplicity and built for reliability.
SIZE
Half-Dice: 3⁄8" x 1 ⅛" x 7⁄8", (0.95 x 2.86 x 2.22 cm)
FEATURES / BENEFITS
AHRI performance certified
Energy-efficient model (see EnergyStar.gov)
Durable nickel-plated copper evaporators (Made in Manitowoc, WI)
Simple 3-position control: ON / OFF / CLEAN
Smudge-resistant stainless-like exterior
R290 offers a 99.86% GWP reduction compared to R410A
Front-facing evaporator for easy access
One-touch cleaning—just add chemical, no ice removal needed
Tool-free removal of food zone components
Smooth, white plastic interior for quick wipe-downs
Sealed food zone with commercial-grade gaskets
Alpha San antimicrobial protection in key parts
ACCESSORIES
LuminIce® II Virus and Bacteria Inhibitor controls viruses and bacteria in the ice machine
Dispenser Bin Thermostat Kit: Reduces condensation when used with dispensers
Arctic Pure® Pro Water Filters: Reduces sediments and chlorine contaminants down to 0.5 microns
Use with a pre-filter is recommended
R290 Refrigerant
Uses R290, a natural refrigerant with low global warming potential.
CleanAir™ Pack (Optional)
Helps control the growth of bacteria and fungi that cause slime and odors in the food zone.
Easy Maintenance
Access the food zone quickly—just remove two screws and lift off the door.
Smudge-Resistant Finish
High-tech exterior with a stainless-like surface that resists fingerprints and smudges.
Tool-Free Cleaning
Water shield, distribution tube, pump, floats, and trough can be removed by hand for easy cleaning.
Bright Interior
White plastics in the food zone make it easier to spot areas that need attention.
Warranty Coverage
Ice Maker: 3 years parts & labor
Evaporator: 5 years parts & labor
Compressor: 5 years parts, 3 years labor
Specifications
Refrigerant: R290
Air-cooled: 14.1 oz (400 g)
Operating Limits
Ambient temperature range: 40˚ to 110˚F (4.4˚ to 43.3˚C)
Water temperature range: 35˚ to 90˚F (1.7 to 32.2˚C)
Water pressure ice maker (water in)
– Min. 20 psi (137.9 kPA)
– Max. 80 psi (551.1 kPA)
Power
203-208/60/1 standard
Minimum circuit ampacity:
– Air-cooled: 8.6
Maximum Fuse Size
– Air Cooled: 15 Amps
KP1000 Ice Cube Machine – R290
W x D x H: 30" x 24" x 29-1/2", 76.2cm x 60.96cm x 74.93cm
Weight: 203 lb, 92 kg
