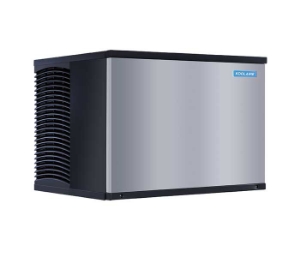

Koolaire KYP0500A-161 Ice Machine, Water Cooled, 521 lb. production, R290, 115V
KP0500 Ice Cube Machine – R290
With a daily output of up to 521 lbs (237 kgs) this machine is built to keep up with high-demand environments.
KP0500 Koolaire Ice Cube Machine
KYP0500A
ICE SHAPES SIZE
Half-Dice: 3⁄8" x 1 ⅛" x 7⁄8"
(0.95 x 2.86 x 2.22 cm)
ACCESSORIES
LuminIce® II Virus and Bacteria Inhibitor Controls viruses and bacteria in the ice machine.
Dispenser Bin Thermostat Kit
Reduces condensation when used with dispensers.
Arctic Pure Pro water filters reduce chlorine, taste, odor and filter sediment down to 5 microns
Refrigerant: R290
SPECIFICATIONS
Operating Limits
Ambient temperature range: 40˚ to 110˚F (4.4˚ to 43.3˚C)
Water temperature range: 40˚ to 90˚F (4.4˚ to 32.2˚C)
Water pressure ice maker (water in)
– Min. 20 psi (137.9 kPA)
– Max. 80 psi (551.1 kPA)
Power
115/60/1 standard
Minimum circuit ampacity:
– Air-cooled: 12.5
Maximum Fuse Size
– Air-cooled: 20 Amps
FEATURES / BENEFITS
AHRI performance certified
Energy-efficient models (see EnergyStar.gov)
Durable nickel-plated copper evaporators (Made in Manitowoc, WI)
Simple 3-position control: ON / OFF / CLEAN
Smudge-resistant stainless-like exterior
R290 offers a 99.86% GWP reduction compared to R410A
Front-facing evaporator for easy access
One-touch cleaning—just add chemical, no ice removal needed
Tool-free removal of food zone components
Smooth, white plastic interior for quick wipe-downs
Sealed food zone with commercial-grade gaskets
Alpha San antimicrobial protection in key parts
Up to 521 lbs (237 kgs) of daily ice production
30" (76.20 cm) wide, 24" (60.96 cm) deep, and 21.5" (54.61 cm) high
R290 Refrigerant
Use R290, a natural refrigerant with low global warming potential, supporting sustainability and energy efficiency.
CleanAir™ Pack (Optional)
Helps control the growth of bacteria and fungi that cause slime and odors in the food zone.
Easy Maintenance
Access the food zone quickly—just remove two screws and lift off the door.
Smudge-Resistant Finish
High-tech exterior with a stainless-like surface that resists fingerprints and smudges.
Tool-Free Cleaning
Water shield, distribution tube, pump, floats, and trough can be removed by hand for easy cleaning.
Bright Interior
White plastics in the food zone make it easier to spot areas that need attention.
Warranty Coverage
Ice Maker: 3 years parts & labor
Evaporator: 5 years parts & labor
Compressor: 5 years parts, 3 years labor
