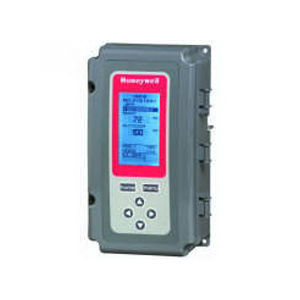

Honeywell T775R2027

Honeywell T775 Electronic Modulating Temperature Controller, -40 to 248 deg F, SPDT Switch, 1/2 hp, Large, NEMA 1
SKU: 75742
Manufacturer part number: T775R2027
Manufacturer:

Honeywell


Please Sign In to display product price.
Honeywell T775 Temperature Controller, Electronic, Modulating, -40 to 248 deg F, 1097 Ohm PTC at 77 deg F (25 deg C) Sensor, +/- 1 deg F at 77 deg F Accuracy, (2) Electronic Series 90, 4-20 mA, 0-10 VDC, 2-10 VDC Analog, (2) SPDT Relay Output, SPDT Switch, 1/2 hp, 24/120/240 VAC, 60 Hz, Large Display, NEMA 1, 8-5/32 Inch H x 4-13/32 Inch W x 2-15/16 Inch D, Includes: (2) Sensors, (2) Temp Inputs, (2) SPDT Relays and (2) Analog Outputs
  • Save time on installations with the easy-to-use graphical interface, large display, and the intuitive programming
  • Use the time clock scheduler or digital input to control the setback and disable output options to help save energy
  • Protect equipment from freezing or overheating on models with the modulating high or low limit control option
  • Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID)
  • Configure models with reset in a few easy steps
  • Control floating actuators with floating outputs on select models
  • Eliminate the need for a separate time delay device and protect equipment with the minimum off time option
  • 1/4 x 2 Inch bulb size
  • 1, 000 ft maximum distance to sensor
  • 1 - 150 deg F throatting range
  • Contact ratings 120 V: 125 VA pilot duty 58.8 ALR, 9.8 AFL, 1/2 hp
  • Contact ratings 240 V: 1/2 hp, 29.4 ALR, 125 VA pilot duty, 4.9 AFL
  • -40 to 125 deg F at 50 Hz ambient

Standard/Approvals: CE Certified, UL Listed

Application: On/Off or Analog Controller


Products specifications
Attribute nameAttribute value
Accuracy+/- 1 deg F at 77 deg F
Dimensions8-5/32 Inch H x 4-13/32 Inch W x 2-15/16 Inch D
DisplayLarge
Enclosure TypeNEMA 1
ManufacturerHoneywell
Power Consumption1/2 hp
Sensor Type1097 Ohm PTC at 77 deg F (25 deg C)
SeriesT775
Switch TypeSPDT
TypeElectronic, Modulating
Voltage Rating24/120/240 VAC, 60 Hz
