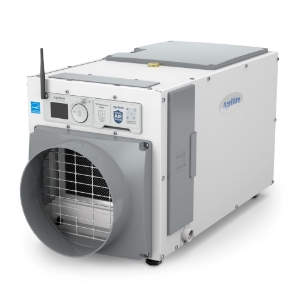

AprilAire E100W 100-Pint Professional-Grade Wi-Fi Whole-House Dehumidifier
Principle of Operation
• The AprilAire Model E100W Wi-Fi Dehumidifier features Wi-Fi enabled technology which offers easy installation, setup, and pairing. Maintenance is made easy through reliable monitoring and enhanced product support. This allows for best-in-class user experience to solve moisture and high humidity.
• The AprilAire E100W Wi-Fi Dehumidifier is designed to dehumidify the air coming into the unit by passing the incoming air over an evaporator coil to drop the air temperature below the dew point of the air. Moisture is removed from the air and drained out of the unit to a common floor or waste drain. The air is then reheated in the condenser coil and exits the unit. Dehumidification occurs until the set point is reached, then shuts off until periodic sampling determines a need for operation.
Features
• Comes with leveling feet
• Wi-Fi enabled digital control with color graphical display. Can be set up for dehumidification with the option of ventilation
• Control mounting option is field-interchangeable from top to front
• ½” EPS cabinet insulation
• Top or end air discharge orientation
• Washable MERV 8 filter (part number 5881) and 10” diameter inlet/outlet duct collars
• Backdraft damper at outlet
• R32 refrigerant
• Corrosion-resistant aluminum coils
• 8’ power cord
• 10°F-30°F discharge air temperature rise
• ¾” MNPT Threaded drain connection with threaded barbed fitting included
• 5-year warranty
Application
The E100W Dehumidifiers are perfect for a wide range of applications including whole-home dehumidification and control of moisture in basements and crawl spaces.
The AprilAire Model E100W Wi-Fi Dehumidifier offers:
• Turn-Key Provisioning: Built-in control w/bluetooth
• Intuitive Controls: Enhanced, digital interface and app integration for ongoing monitoring and maintenance
• Integration with AprilAire Healthy Air App for alerts, diagnosis, and updates
Circulation
The Model E100W can also be programmed to circulate air, which evens out relative humidity levels and temperature in the treated space, eliminating variations in the environment
Voltage
120 V, 6.7 A
Dimensions (Cabinet Only)
Width: 14”, Height: 15”, Length: 26”
