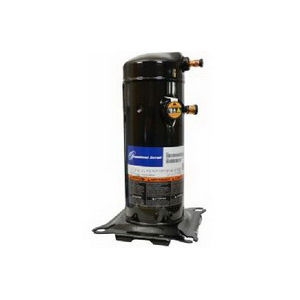

ZPS52LXE‑PFV Compressor, 52,000–64,100 BTU, 208/230V, 32.0A max, R‑410A HFC, 77.6 lbs, 70–75 dBA, 7/8" suction, 1/2" discharge
This compressor is NOT approved for in Daikin, Goodman and Amana service applications
Features & Benefits
- Modulating Scroll Technology: Offers variable capacity for improved efficiency and comfort.
- LXE Platform Compatibility: Designed to replace older Copeland models (ZPKA/KV/K5/K6/K7), streamlining service and inventory.
- Robust Construction: Maintains Copeland’s reputation for reliability and performance.
- Field Service Ready: Ideal for retrofitting and servicing existing R-410A systems.
Technical Specifications
ZPS52LXE‑PFV
Scroll Compressor, R‑410A HFC, 208/230V, 1‑Phase, 60 Hz
Capacity: 52,000 BTU/hr at 45/130; 64,100 BTU/hr at 50/115
Power Input: 4,760 W at 45/130; 3,940 W at 50/115
EER: 10.9 at 45/130; 16.25 at 50/115
Mass Flow: 757 lbs/hr at 45/130; 848 lbs/hr at 50/115
Mechanical Displacement: 2.92 in³/rev
Overall Length: 9.69 in
Overall Width: 9.69 in
Overall Height: 16.93 in
Mounting Length: 7.50 in
Mounting Width: 7.50 in
Mounting Height: 17.70 in
Suction Connection: 7/8 in stub
Discharge Connection: 1/2 in stub
Net Weight: 77.6 lbs
Sound Power: 70 dBA avg, 75 dBA max
Vibration: 2.0 mils avg, 3.0 mils max
MCC: 35.5 A
Max Operating Current: 32.0 A
RLA (contactor): 25.4 A
RLA (breaker/wire): 22.8 A
LRA High: 147.4 A
RPM: 3500
Box IP: 21
UL File: SA2337‑20031217
Oil Type: 3MA POE Oil
Oil Charge: 42 oz
Oil Recharge: 36 oz
Capacitor Options: 014‑0064‑14 (40.0 MFD, 440V); 014‑0061‑27 (88.0–106.0 MFD, 330V)
