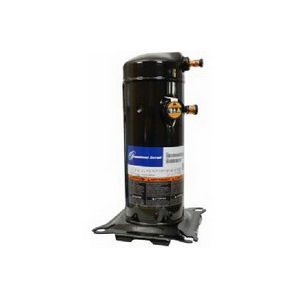

ZPS44LXE‑PFV Compressor, 44,200–53,900 BTU, 208/230V, 26.0A max, R‑410A HFC, 79.1 lbs, 70–75 dBA, 7/8" suction, 1/2" discharge
This compressor is NOT approved for in Daikin, Goodman and Amana service applications
Features & Benefits
- Modulating Scroll Technology: Offers variable capacity for improved efficiency and comfort.
- LXE Platform Compatibility: Designed to replace older Copeland models (ZPKA/KV/K5/K6/K7), streamlining service and inventory.
- Robust Construction: Maintains Copeland’s reputation for reliability and performance.
- Field Service Ready: Ideal for retrofitting and servicing existing R-410A systems.
Technical Specifications
ZPS44LXE‑PFV
Scroll Compressor, R‑410A HFC, 208/230V, 1‑Phase, 60 Hz
Capacity: 44,200 BTU/hr at 45/130; 53,900 BTU/hr at 50/115
Power Input: 4,090 W at 45/130; 3,280 W at 50/115
EER: 10.8 at 45/130; 16.4 at 50/115
Mass Flow: 637 lbs/hr at 45/130; 714 lbs/hr at 50/115
Mechanical Displacement: 2.51 in³/rev
Overall Length: 9.69 in
Overall Width: 9.69 in
Overall Height: 16.93 in
Mounting Length: 7.50 in
Mounting Width: 7.50 in
Mounting Height: 17.70 in
Suction Connection: 7/8 in stub
Discharge Connection: 1/2 in stub
Net Weight: 79.1 lbs
Sound Power: 70 dBA avg, 75 dBA max
Vibration: 2.0 mils avg, 3.0 mils max
MCC: 30.8 A
Max Operating Current: 26.0 A
RLA (contactor): 22.0 A
RLA (breaker/wire): 19.7 A
LRA High: 138 A
RPM: 3500
Box IP: 21
UL File: SA2337‑20031217
Oil Type: 3MA POE Oil
Oil Charge: 42 oz
Oil Recharge: 36 oz
Capacitor Options: 014‑0064‑14 (40.0 MFD, 440V); 014‑0061‑27 (88.0–106.0 MFD, 330V)
