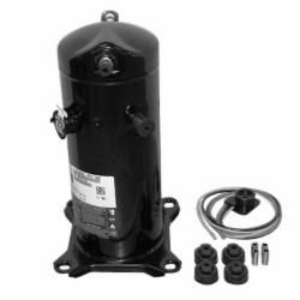

ZPS33LXE‑PFV Two‑stage Copeland scroll compressor, 33.4–40.4 kBTU capacity (R‑410A), 208/230V 1‑phase, 14.1A max, 3/4" suction, 1/2" discharge, 52 lb, 70–75 dBA, 3MA POE Oil oil.
This compressor is NOT approved for in Daikin, Goodman and Amana service applications
Features & Benefits
- Modulating Scroll Technology: Offers variable capacity for improved efficiency and comfort.
- LXE Platform Compatibility: Designed to replace older Copeland models (ZPKA/KV/K5/K6/K7), streamlining service and inventory.
- Robust Construction: Maintains Copeland’s reputation for reliability and performance.
- Field Service Ready: Ideal for retrofitting and servicing existing R-410A systems.
Performance
Condition 45°F / 130°F - 50°F / 115°F
---------------------------------------
Capacity (BTU/hr) 33,400 - 40,400
Power (W) 3,090 - 2,530
Current (A) 14.1 - 11.6
EER (BTU/Wh) 10.8 - 15.95
Mass Flow (lb/hr) 481 - 536
Mechanical
- Mechanical Displacement: 1.93 in³/rev
- Dimensions (L × W × H): 9.69" × 9.69" × 15.28"
- Mounting Footprint: 7.50" × 7.50"
- Mounting Height: 16.00"
- Suction Connection: 3/4" stub
- Discharge Connection: 1/2" stub
- Net Weight: 52 lb
- Sound Power: 70 dBA avg / 75 dBA max
- Vibration: 2.0 mil avg / 3.0 mil max
Electrical
- Voltage: 208/230V, 1‑phase, 60 Hz
- MCC: 23.7 A
- Max Operating Current: 20.0 A
- RLA (MCC/1.4): 16.9 A
- RLA (MCC/1.56): 15.2 A
- LRA (High/Low): Not listed
- RPM: 3500
- IP Rating: IP21
- UL File: SA2337‑20031217
- UL File Date: 2014‑03‑21
Oil & Capacitors
- Oil Type: 3MA POE Oil
- Initial Oil Charge: 25 oz
- Oil Recharge: 21 oz
- Run Capacitor: 014‑0064‑25, 45 µF, 370V
- Start/Boost Capacitor: 014‑0061‑27, 88–106 µF, 330V
Application
- Refrigerant: R‑410A
- Application: Air Conditioning
- Two‑Stage Load: 67% low stage (per Copeland alternate application table)
- Production Status: Available for sale (U.S.
