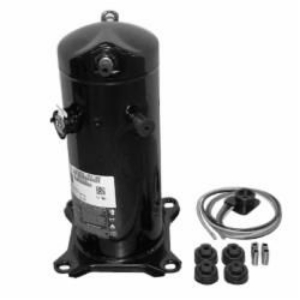

ZPS31LXE‑PFV Daikin Service Compressor, 31,700–42,800 BTU, 208/230V, 18.0A max, R‑410A HFC, 51.8 lbs, 70–75 dBA, 3/4" suction, 1/2" discharge
For Use in Daikin, Goodman and Amana service applications only
Features & Benefits
- Modulating Scroll Technology: Offers variable capacity for improved efficiency and comfort.
- LXE Platform Compatibility: Designed to replace older Copeland models (ZPKA/KV/K5/K6/K7), streamlining service and inventory.
- Robust Construction: Maintains Copeland’s reputation for reliability and performance.
- Field Service Ready: Ideal for retrofitting and servicing existing R-410A systems.
Technical Specifications
ZPS31LXE‑PFV
Scroll Compressor, R‑410A HFC, 208/230V, 1‑Phase, 60 Hz
Capacity: 31,700 BTU/hr at 45/130; 42,800 BTU/hr at 50/100
Power Input: 3,020 W at 45/130; 2,030 W at 50/100
EER: 10.45 at 45/130; 21.05 at 50/100
Mass Flow: 463 lbs/hr at 45/130; 524 lbs/hr at 50/100
Mechanical Displacement: 1.82 in³/rev
Overall Length: 9.69 in
Overall Width: 9.69 in
Overall Height: 15.54 in
Mounting Length: 7.50 in
Mounting Width: 7.50 in
Mounting Height: 16.30 in
Suction Connection: 3/4 in stub
Discharge Connection: 1/2 in stub
Net Weight: 51.8 lbs
Sound Power: 70 dBA avg, 75 dBA max
Vibration: 2.0 mils avg, 3.0 mils max
MCC: 22.5 A
Max Operating Current: 18.0 A
RLA (contactor): 16.1 A
RLA (breaker/wire): 14.4 A
LRA High: 75.7 A
RPM: 3500
Box IP: 21
UL File: SA2337‑20031217
Oil Type: 3MA POE Oil
Oil Charge: 25 oz
Oil Recharge: 21 oz
Capacitor Options: 014‑0064‑06 (30.0 MFD, 370V); 014‑0061‑27 (88.0–106.0 MFD, 330V)
