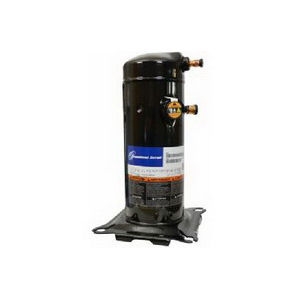

ZPS17LXE‑PFV Compressor, 16,950–20,700 BTU, 208/230V, 11.0A max, R‑410A HFC, 48.9 lbs, 66–71 dBA, 3/4" suction, 1/2" discharge
This compressor is NOT approved for in Daikin, Goodman and Amana service applications
Features & Benefits
- Modulating Scroll Technology: Offers variable capacity for improved efficiency and comfort.
- LXE Platform Compatibility: Designed to replace older Copeland models (ZPKA/KV/K5/K6/K7), streamlining service and inventory.
- Robust Construction: Maintains Copeland’s reputation for reliability and performance.
- Field Service Ready: Ideal for retrofitting and servicing existing R-410A systems.
Technical Specifications
ZPS17LXE‑PFV
Scroll Compressor, R‑410A HFC, 208/230V, 1‑Phase, 60 Hz
Capacity: 16,950 BTU/hr at 45/130; 20,700 BTU/hr at 50/115
Power Input: 1,695 W at 45/130; 1,360 W at 50/115
EER: 10.0 at 45/130; 15.2 at 50/115
Mass Flow: 245 lbs/hr at 45/130; 273 lbs/hr at 50/115
Mechanical Displacement: 1.08 in³/rev
Overall Length: 9.69 in
Overall Width: 9.69 in
Overall Height: 15.28 in
Mounting Length: 7.50 in
Mounting Width: 7.50 in
Mounting Height: 16.00 in
Suction Connection: 3/4 in stub
Discharge Connection: 1/2 in stub
Net Weight: 48.9 lbs
Sound Power: 66 dBA avg, 71 dBA max
Vibration: 2.0 mils avg, 3.0 mils max
MCC: 13.9 A
Max Operating Current: 11.0 A
RLA (contactor): 9.9 A
RLA (breaker/wire): 8.9 A
LRA High: 52 A
RPM: 3500
Box IP: 21
UL File: SA2337‑20031217
Oil Type: 3MA POE Oil
Oil Charge: 21 oz
Oil Recharge: 17 oz
Capacitor Options: 014‑0064‑06 (30.0 MFD, 370V); 014‑0061‑27 (88.0–106.0 MFD, 330V)
