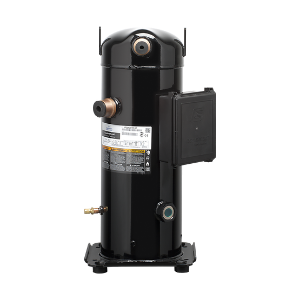

YP51K1TPFV8A1 Compressor, 52,300–67,300 BTU, 208/230V, 29.0A max, R‑32, 76.6 lbs, 68–73 dBA, 7/8" suction, 1/2" discharge
For Use in Daikin, Goodman and Amana service applications only
YP51K1TPFV8A1
Scroll Compressor, R‑32, 208/230V, 1‑Phase, 60 Hz
Capacity: 52300 BTU/hr at 45/130; 67300 BTU/hr at 50/100
Power Input: 4780 W at 45/130; 3090 W at 50/100
EER: 10.95 at 45/130; 21.8 at 50/100
Mass Flow: 502 lbs/hr at 45/130; 565 lbs/hr at 50/100
Mechanical Displacement: 2.71 in3/rev
Overall Length: 9.27 in
Overall Width: 9.27 in
Overall Height: 16.49 in
Mounting Length: 7.50 in
Mounting Width: 7.50 in
Mounting Height: 17.20 in
Suction Connection: 7/8 in stub
Discharge Connection: 1/2 in stub
Net Weight: 76.6 lbs
Sound Power: 68 dBA avg, 73 dBA max
Vibration: 2.0 mils avg, 3.0 mils max
MCC: 37.3 A
Max Operating Current: 29.0 A
RLA (contactor): 26.6 A
RLA (breaker/wire): 23.9 A
LRA High: 148 A
RPM: 3500
Box IP: 21
UL File: SA2337‑20200323
Oil Type: 4MA POE R32
Oil Charge: 42 oz
Oil Recharge: 36 oz
Capacitor Options: 014‑0064‑30 (80.0 MFD, 370V); 014‑0061‑27 (88.0–106.0 MFD, 330V)
