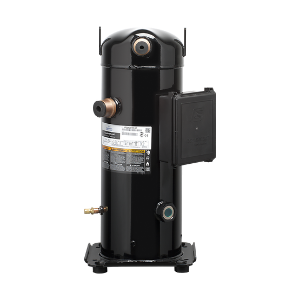

YP40K1TPFV8A1 Compressor, 40,700–52,900 BTU, 208/230V, 23.0A max, R‑32, 76.6 lbs, 68–73 dBA, 7/8" suction, 1/2" discharge
For Use in Daikin, Goodman and Amana service applications only
YP40K1TPFV8A1
Scroll Compressor, R‑32, 208/230V, 1‑Phase, 60 Hz
Capacity: 40700 BTU/hr at 45/130; 52900 BTU/hr at 50/100
Power Input: 3720 W at 45/130; 2420 W at 50/100
EER: 10.95 at 45/130; 21.9 at 50/100
Mass Flow: 390 lbs/hr at 45/130; 444 lbs/hr at 50/100
Mechanical Displacement: 2.12 in3/rev
Overall Length: 9.27 in
Overall Width: 9.27 in
Overall Height: 16.49 in
Mounting Length: 7.50 in
Mounting Width: 7.50 in
Mounting Height: 17.20 in
Suction Connection: 7/8 in stub
Discharge Connection: 1/2 in stub
Net Weight: 76.6 lbs
Sound Power: 68 dBA avg, 73 dBA max
Vibration: 2.0 mils avg, 3.0 mils max
MCC: 30.3 A
Max Operating Current: 23.0 A
RLA (contactor): 21.6 A
RLA (breaker/wire): 19.4 A
LRA High: 127.7 A
RPM: 3500
Box IP: 21
UL File: SA2337‑20200323
Oil Type: 4MA POE R32
Oil Charge: 42 oz
Oil Recharge: 36 oz
Capacitor Options: 014‑0064‑25 (45.0 MFD, 370V); 014‑0061‑27 (88.0–106.0 MFD, 330V)
