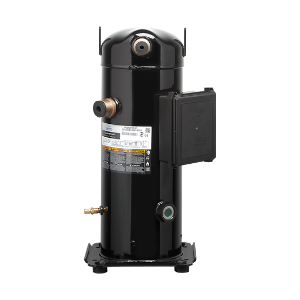

YP29K1TPFV8A1 Compressor, 29,600–39,200 BTU, 208/230V, 18.0A max, R‑32, 52.5 lbs, 68–73 dBA, 3/4" suction, 1/2" discharge
For Use in Daikin, Goodman and Amana service applications only
YP29K1TPFV8A1
Scroll Compressor, R‑32, 208/230V, 1‑Phase, 60 Hz
Capacity: 29600 BTU/hr at 45/130; 39200 BTU/hr at 50/100
Power Input: 2770 W at 45/130; 1810 W at 50/100
EER: 10.65 at 45/130; 21.6 at 50/100
Mass Flow: 283 lbs/hr at 45/130; 329 lbs/hr at 50/100
Mechanical Displacement: 1.57 in3/rev
Overall Length: 9.00 in
Overall Width: 9.00 in
Overall Height: 15.54 in
Mounting Length: 7.50 in
Mounting Width: 7.50 in
Mounting Height: 16.30 in
Suction Connection: 3/4 in stub
Discharge Connection: 1/2 in stub
Net Weight: 52.5 lbs
Sound Power: 68 dBA avg, 73 dBA max
Vibration: 2.0 mils avg, 3.0 mils max
MCC: 21.0 A
Max Operating Current: 18.0 A
RLA (contactor): 15.0 A
RLA (breaker/wire): 13.5 A
LRA High: 83.3 A
RPM: 3500
Box IP: 21
UL File: SA2337‑20200323
Oil Type: 4MA POE R32
Oil Charge: 25 oz
Oil Recharge: 21 oz
Capacitor Options: 014‑0064‑08 (40.0 MFD, 370V); 014‑0061‑27 (88.0–106.0 MFD, 330V)
