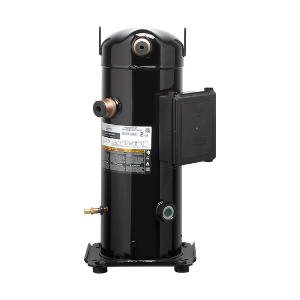

YP14K1TPFV8A1 Compressor, 15,100–19,900 BTU, 208/230V, 10.0A max, R‑32, 48.0 lbs, 66–71 dBA, 3/4" suction, 1/2" discharge
For Use in Daikin, Goodman and Amana service applications only
YP14K1TPFV8A1
Scroll Compressor, R‑32, 208/230V, 1‑Phase, 60 Hz
Capacity: 15100 BTU/hr at 45/130; 19900 BTU/hr at 50/100
Power Input: 1490 W at 45/130; 934 W at 50/100
EER: 10.2 at 45/130; 21.3 at 50/100
Mass Flow: 145 lbs/hr at 45/130; 167 lbs/hr at 50/100
Mechanical Displacement: 0.84 in3/rev
Overall Length: 9.69 in
Overall Width: 9.69 in
Overall Height: 14.94 in
Mounting Length: 7.50 in
Mounting Width: 7.50 in
Mounting Height: 15.70 in
Suction Connection: 3/4 in stub
Discharge Connection: 1/2 in stub
Net Weight: 48.0 lbs
Sound Power: 66 dBA avg, 71 dBA max
Vibration: 2.0 mils avg, 3.0 mils max
MCC: 13.0 A
Max Operating Current: 10.0 A
RLA (contactor): 9.3 A
RLA (breaker/wire): 8.3 A
LRA High: 44.3 A
RPM: 3500
Box IP: 21
UL File: SA2337‑20200323
Oil Type: 4MA POE R32
Oil Charge: 21 oz
Oil Recharge: 17 oz
Capacitor Options: 014‑0064‑07 (35.0 MFD, 370V); 014‑0061‑27 (88.0–106.0 MFD, 330V)
