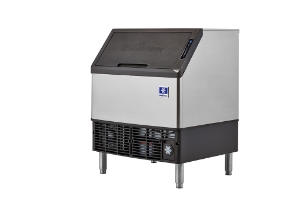

Manitowoc UYP0240A-161B NEO 26" Air Cooled Undercounter Dice Cube Ice Machine with 90 lb. Bin - 115V, 250 lbs.
NEO undercounter ice machines are designed to provide ice right where you need it – within reach. Improvements in Performance, Intelligence and Convenience make your ice machine easy to own and less expensive to operate.
Please check out our NEO Mini Site for more features, benefits and videos.
Integrated Water Filtration
Great Taste in Every Cube: Experience cleaner, clearer ice that enhances the quality of your beverages.
Enhanced Performance: Our integrated water filtration system ensures your ice machine operates at its peak, delivering optimum performance day in, day out.
Minimal Maintenance: Enjoy the benefits of lower maintenance needs, thanks to the filtration system's ability to keep your machine clean and efficient.
Sustainability
Next-Generation Cooling: Utilize the eco-conscious R290 refrigerant, minimizing environmental impact without compromising performance.
Efficiency Redefined: Experience advancements in both energy and water efficiency, reducing your operational costs and ecological footprint.
ENERGY STAR® Excellence: Choose from our selection of models that have earned the ENERGY STAR® qualification, representing superior energy efficiency and sustainability.
Convenience
Sleek Foodzone Layout: Enjoy a streamlined design that not only looks good but is incredibly easy to maintain.
Intuitive Indicators: Stay informed with clear status and service alerts that keep you ahead of maintenance needs.
Ease of Cleaning: With removable bins and filters, cleaning becomes a hassle-free task, ensuring your machine remains in top condition.
Commercial Warranty
3-year ice maker parts and labor
5-year evaporator parts and labor
Compressor parts for 5 years and labor for 3 years
SPECIFICATIONS
Half-Dice: 3⁄8" x 1 ⅛" x 7⁄8", (0.95 x 2.86 x 2.22 cm)
Up to 200 lbs (91 kgs) of daily ice production
66.0 cm (26") wide, 72.4 cm (28.50") deep, and 97.8 cm (38.50") high on 15.24 cm (6") legs
0.086 m³ (3.037 ft³ ) cabinet volume
40.0 kgs (90 lbs) ice storage capacity
Refrigerant R290
Compressor: Nominal rating 0.5 HP
Operating Limits:
Ambient temperature range: 10˚ to 37.7˚C (50˚ to 100˚F)
Water temperature range: 4.4˚ to 32.2˚C (45˚ to 90˚F)
Water pressure ice maker
Water in
- Min. 137.9 kPA (20 psi)
- Max. 551.1 kPA (80 psi)
Power
115/60/1 ice machines are factory pre-wired with a 8 ft (243 cm) power cord and NEMA 5‑15P-plug configuration. 208-230/60/1 ice machines are factory pre-wired with a
8 ft (243 cm) power cord only, no plug is supplied.
Total Amps: 115/60/1 Air-cooled: 7.0 amps
Maximum Fuse Size: Air and water-cooled: 15 amps, HACR-type circuit breakers can be used in place of fuses
UYP-240A
W x D x H 26" x 28-1/2" x 32-1/2", 66cm x 72.4cm x 82.6cm
Weight 157 lb, 71.2 kg
Power Input Type Electric
Primary Power Input 115-120 V x 60 Hz x 1 PH
Energy Use 6 kWh/100lbs ice
Commercial Warranty
Ice Maker - 3 Year Parts and Labor
Evaporator - 5 Year Parts and Labor
Compressor - 5 Year Parts, 3 Year Labor
Standard/Approvals: cULus Listed, CE Certified, NSF Approved, AHRI Certified, California Low Lead Qualified
