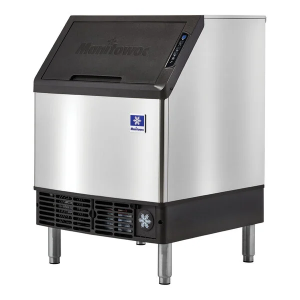

Manitowoc UDP0140A-161B NEO 26" Air Cooled Undercounter Half Dice Cube Ice Machine with 90 lb. Bin - 115V, 139 lb.
NEO undercounter ice machines are designed to provide ice right where you need it – within reach. Improvements in Performance, Intelligence and Convenience make your ice machine easy to own and less expensive to operate.
Please check out our NEO Mini Site for more features, benefits and videos.
Onboard Water Filtration
Integrated water filtration improves machine efficiency and performance while ensuring cleaner, clearer, and great‑tasting ice
Touchpad
Easy to read and use touchpad - on/off, delay, clean, filter change, full bin, service indicator
Removable Bin
Removable, forward-sliding storage bin allows for easy access to refrigeration components for cleaning and maintenance
Air Flow
Front ventilation is ideal for installation under countertops or next to other equipment
SPECIFICATIONS
Dice: 2.22 x 2.22 x 2.22 cm, (7⁄8" x 7⁄8" x 7⁄8" )
Up to 60 kg (132 lbs) of daily ice production
66.0 cm (26") wide, 72.4 cm (28.50") deep, and 97.8 cm (38.50") high on 15.24 cm (6") legs
0.086 m³ (3.037 ft³ ) cabinet volume
40.0 kgs (90 lbs) ice storage capacity
Refrigerant R290
Compressor: Nominal rating 0.33 HP
Operating Limits:
Ambient temperature range: 10˚ to 37.7˚C (50˚ to 100˚F)
Water temperature range: 4.4˚ to 32.2˚C (45˚ to 90˚F)
Water pressure ice maker
Water in
- Min. 137.9 kPA (20 psi)
- Max. 551.1 kPA (80 psi)
Power
Instant Power - 575 W
Maximum Fuse Size
Air-cooled: 15 amps, HACR-type circuit breakers can be used in place of fuses
UDP-140A
W x D x H 26" x 28-1/2" x 32-1/2", 66cm x 72.4cm x 82.6cm
Weight 153 lb, 69.4 kg
Power Input Type Electric
Primary Power Input 115-120 V x 60 Hz x 1 PH
Energy Use 7.25 kWh/100lbs ice
Commercial Warranty
Ice Maker - 3 Year Parts and Labor
Evaporator - 5 Year Parts and Labor
Compressor - 5 Year Parts, 3 Year Labor
Standard/Approvals: cULus Listed, CE Certified, NSF Approved, AHRI Certified, California Low Lead Qualified
