Robertshaw ETC-241000

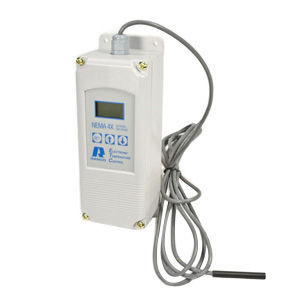

Robertshaw® ETC-241000 Line Voltage Mechanical Thermostat, -30 to 220 deg F, 1 - 30 deg F Differential
SKU: 20526
Manufacturer part number: ETC-241000
Manufacturer:

Robertshaw


Please Sign In to display product price.

Robertshaw® ETC Mechanical Thermostat, Line Voltage, -30 to 220 deg F, 1 - 30 deg F Differential, (2) SPDT, Open/Close On Rise Switch, Thermistor Sensor, 1/4 Inch Dia x 2 Inch L Sensing Bulb, 2 Stage, 120/208/240 VAC, 9.8 A at 120 VAC, 4 A at 208/240 VAC, 1 Relay Inputs, Horizontal/Vertical Mount, NEMA 4X, Plastic, Gray, 2-1/2 Inch L x 2-3/4 Inch W x 7-3/4 Inch H

  • Wide temperature ranges available
  • Wide differential adjustment
  • LCD read-out for sensor temperature, control settings, and relay status
  • High amp output relay
  • EEPROM memory retains control settings during power outages
  • Keypad lockout to prevent end user alteration of settings
  • Extendable 8 ft lead with sensor up to 400 feet using 18 or 22 ga thermostat wire
  • Easy 4-step setup
  • Single and AC models
  • 1 kOhm 0 - 10 V output impedance
  • 1 Relay Input





Standard/Approvals: CSA LR68340 Class 4813 Certified, UL E94419 Listed

Application: Milk Coolers, Refrigerated Display Cases, Staging Heating/Cooling and Walk-in and Reach-in Refrigerators



Products specifications
Attribute nameAttribute value
ColorGray
Differential1 - 30 deg F
Dimensions2-1/2 Inch L x 2-3/4 Inch W x 7-3/4 Inch H
Enclosure TypeNEMA 4X, Plastic
Full Load Current9.8 A at 120 VAC, 4 A at 208/240 VAC
ManufacturerRobertshaw
Mounting TypeHorizontal/Vertical
Sensing Bulb Size1/4 Inch Dia x 2 Inch L
Sensor TypeThermistor
SeriesETC
Switch Type(2) SPDT, Open/Close On Rise
TypeLine Voltage
Voltage Rating120/208/240 VAC
