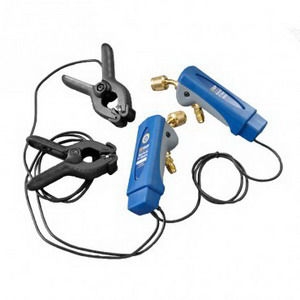

ManTooth™ Dual Temperature Pressure Gauge, Wireless, 0 - 700 psi, +/- 0.36 deg F Accuracy, -4 to 160 deg F, 6 Inch L x 1.6 Inch W x 2.3 Inch H, Includes: P/T Module and Tether Unit with Boots, Temperature Probe Clamps, USB Cable and Case
- The yellow jacket ManTooth™ app (free download) lets you wirelessly calculate and display the system’s actual pressures, temperatures, superheat and subcooling in an easy-to-read color format on your smartphone device
- Wireless connection to your smart device
- Test systems without losing refrigerant, built-in schrader ports to easily adjust refrigerant charge
- Ranges up to 400 ft
- Easily track and store service history
- Pressure sensing resolution : 0.1 psi, 0.1 bar, 1 kPa, 0.001 MPa, 0.01 kg/cm^2
- Pressure sensing accuracy : 0.5% of full scale at 25 deg C; 1% of full scale 55 to 130 deg F; 2% of full scale -40 to 248 deg F
- Proof pressure : Tolerable pressure without internal damage 1000 psi
- Burst pressure : Tolerable pressure without loss of seal 1500 psi
- Temperature sensor range (instrument) sensing element : -40 to 266 deg F; max cord temp: 176 deg F; max clamp temp: 203 deg F
- Temperature display resolution : 0.1 deg F
- Refrigerant database : 98 NIST refrigerant profiles included, upgradeable
- Screenshot feature : save pressure and temperature readings from your sessions which can be automatically organized by location and unit being serviced
- Temperature sensors : capable of measuring 2 temperatures using high accuracy NTC thermistors
- System attachment very small internal volume minimizes refrigerant loss during system analysis
- Pressure zeroing simple single button zeroing at the start of each session
- Elevation compensation enter elevation at the start of the session for effortless psia compensation
- Battery rechargeable LiPo battery for long battery life and excellent recharging capability for the life of your ManTooth™
- Standard manifolds and hoses can lose over 50 times more refrigerant with each connection
Application: Light Commercial HVAC and Residential
