Century SVB2074BV1

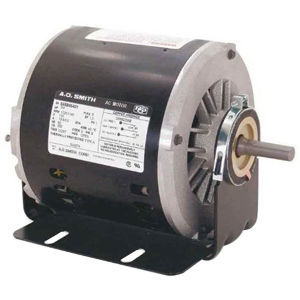

Century® SVB2074BV1 Split Phase Evaporative Cooler Motor, 3/4 - 1/3 hp, 115 V, 9.8/6.4 A, 1725/1140 Rpm, Frame 56
SKU: 76298
Manufacturer part number: SVB2074BV1
Manufacturer:

Regal-Beloit


Please Sign In to display product price.

Century® Evaporative Cooler Motor, Split Phase, 3/4 - 1/3 hp, 115 V, 9.8/6.4 A, 60 Hz, 1 Phase, 56 Frame, 1725/1140 Rpm, 2 Speed, CW/CCW, Service Factor: 1, 9-13/16 Inch Overall Length, 5/8 Inch Dia x 1-7/8 Inch L Shaft, Ball Bearing, Cradle Mount, 40 deg C, Class B Insulation, Open Drip Proof
'

  • Premium moisture resistance windings
  • Brass current carrying terminal board parts
  • Continuous filtration of oil
  • Electro-zinc plated governor parts, dust caps, terminal board cover
  • Heavy magnet wire insulation
  • High viscosity encapsulating varnish
  • Moisture resistant terminal board
  • No frame ventilation openings in the top portion of the frame

'

'

'

Standard/Approvals: UL Listed, CSA Certified

Application: For Belt Driven Evaporative Coolers



Products specifications
Attribute nameAttribute value
Amperage Rating9.8/6.4 A
Bearing TypeBall
Enclosure TypeOpen Drip Proof
Frame56
Frequency Rating60 Hz, 1 Phase
Insulation TypeClass B
ManufacturerRegal-Beloit
Mounting TypeCradle
Number of Speeds2
Overall Length9-13/16 Inch
Power Rating3/4 - 1/3 hp
Rotation TypeCW/CCW
Service Factor1
Shaft Size5/8 Inch Dia x 1-7/8 Inch L
Speed1725/1140 Rpm
Temperature Rating40 deg C
TypeSplit Phase
Voltage Rating115 V
