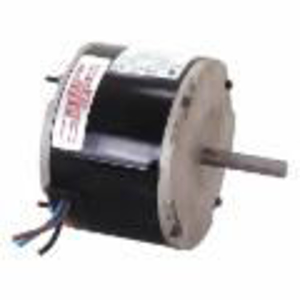

Century Condenser Fan Motor, Permanent Split Capacitor, 1/8 hp, 200 - 230 V, 0.7 - 0.9 A, 60 Hz, 1 Phase, 48Y Frame, 1650 Rpm, 1 Speed, CCWLE, Service Factor: 1, Capacitor: 4 uF at 370 V, 5-5/8 Inch Body Dia, 5-1/8 Inch Overall Length, 1/2 Inch Dia x 1-1/2 Inch L Shaft, Sleeve Bearing, Stud Mount, 40 deg C, Class B Insulation, Totally Enclosed Air Over
- Automatic thermal protection
- 3-5/8 Inch length without shaft
- 5-3/16 Inch bolt circle diameter
- 3-5/8 x 3-5/8 Inch stud pattern
- Replaces Trane 3D149098P01, 1673, K55DJK-6905
Standard/Approvals: UL Listed, CSA Certified
