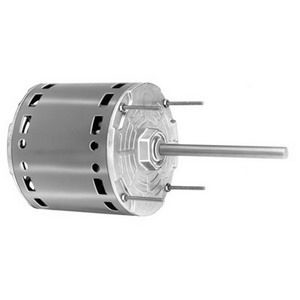

Fasco D940

Fasco® D940 Permanent Split Capacitor Condenser Fan Motor, 3/4 hp, 208/230 V, 4.4 A, 1075 Rpm, Frame 5.6 Inch, Open
SKU: 48197
Manufacturer part number: D940
Manufacturer:

Regal-Beloit


Please Sign In to display product price.
Fasco® Condenser Fan Motor, Permanent Split Capacitor, 3/4 hp, 208/230 V, 4.4 A, 60 Hz, 1 Phase, 5.6 Inch Frame, 1075 Rpm, 1 Speed, Reversible, Capacitor: 15 uF at 370 V, 5.6 Inch Body Dia, 1/2 Inch Dia x 6-1/2 Inch L Shaft, Ball Bearing, Stud Mount, 60 deg C, Open, Includes: Shaft Water Slinger
  • 5-1/3 Inch length less shaft
  • 5-6/32 Inch bolt circle
  • Automatic thermal protection

Standard/Approvals: UL Listed, CSA Certified


Products specifications
Attribute nameAttribute value
Amperage Rating4.4 A
Bearing TypeBall
Body Diameter5.6 Inch
Capacitor15 uF at 370 V
Enclosure TypeOpen
Frame5.6 Inch
Frequency Rating60 Hz, 1 Phase
ManufacturerRegal-Beloit
Mounting TypeStud
Number of Speeds1
Power Rating3/4 hp
Rotation TypeReversible
Shaft Size1/2 Inch Dia x 6-1/2 Inch L
Speed1075 Rpm
Temperature Rating60 deg C
TypePermanent Split Capacitor
Voltage Rating208/230 V
