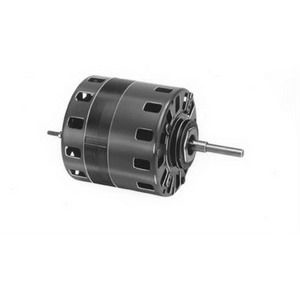

Fasco D492

Fasco® D492 Shaded Pole Refrigeration Fan Motor, 1/10 - 1/15 hp, 115/208/230 V, 3.4 - 1.7 A, 1050 Rpm, Frame 42, CW
SKU: 20464
Manufacturer part number: D492
Manufacturer:

Regal-Beloit


Please Sign In to display product price.
Fasco® Refrigeration Fan Motor, Shaded Pole, 1/10 - 1/15 hp, 115/208/230 V, 3.4 - 1.7 A, 60 Hz, 1 Phase, 42 Frame, 1050 Rpm, 1 Speed, CW, Service Factor: 1, Capacitor: 3 uF at 370 V, 5 Inch Body Dia, 3/8 Inch Dia x 3-1/8 Inch L Shaft, Sleeve Bearing, Resilient Rings Mount, Open Ventilated
  • Automatic overload protection
  • 4-5/8 Inch length less shaft
  • 4-5/8 Inch bolt circle
  • Rotation is determined by viewing the shaft end
  • 3/8 Inch-shaft diameter with adapter to convert to 1/2 Inch diameter
  • Self-cooled
  • Weld nuts on 3.5 Inch BC for stud mount
  • Extended hubs with rubber rings for base mount

Standard/Approvals: UL Listed, CSA Certified

Application: Air Conditioning Units, Commercial Refrigeration Condensers, Direct Drive and Belted Fans, Exhaust Fans, Unit Heaters and ventilators


Products specifications
Attribute nameAttribute value
Amperage Rating3.4 - 1.7 A
Bearing TypeSleeve
Body Diameter5 Inch
Capacitor3 uF at 370 V
Enclosure TypeOpen Ventilated
Frame42
Frequency Rating60 Hz, 1 Phase
ManufacturerRegal-Beloit
Mounting TypeResilient Rings
Number of Speeds1
Power Rating1/10 - 1/15 hp
Rotation TypeCW
Service Factor1
Shaft Size3/8 Inch Dia x 3-1/8 Inch L
Speed1050 Rpm
TypeShaded Pole
Voltage Rating115/208/230 V
