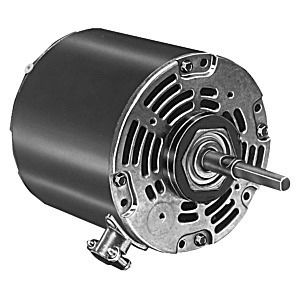

Fasco® Refrigeration Fan Motor, Permanent Split Capacitor, 1/10 hp, 115/208 - 230 V, 1.9 - 0.9 A, 60 Hz, 1 Phase, 48 Frame, 1550 Rpm, 1 Speed, Reversible, Service Factor: 1, Capacitor: 3 uF at 370 V, 5 Inch Body Diameter, 4-13/16 Inch Overall Length, 3/8 Inch Dia x 3-1/3 Inch L Shaft, Sleeve Bearing, Resilient Ring Mount, Open
- Thermally protected
- Rotation is determined by viewing the shaft end
- Shaft length is measured from motor face
- Automatic overload
- 3.5 Inch bolt circle
- Front end shield drilled and tapped with four 10-32 threads on 3.5 Inch bolt circle
Standard/Approvals: CSA Certified, UL Listed
Application: Commercial and Industrial Unit Heaters
