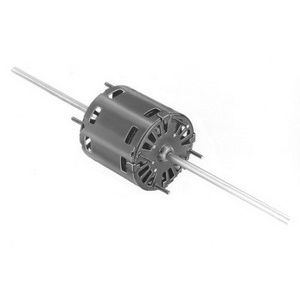

Fasco® D300 General Purpose Motor, Double Shaft, Shaded Pole, 1/14 - 1/25 hp, 115 V, 2.5 - 1.5 A, 60 Hz, 1 Phase, 3.3 Inch Frame, 1500 Rpm, 2 Speed, Service Factor: 1, Capacitor: 4 uF at 370 V, 3.3 Inch Body Diameter, 5/16 Inch Dia x 6-3/8 Inch L Shaft, Sleeve Bearing, Stud Mount, 35% Efficiency, 40 deg C, Class B Insulation, Open
- Automatic overload
- Rotation is determined by viewing the shaft end
- Shaft length is measured from motor face
- 3-1/4 Inch length less shaft
Application: Evaporator Coil Fans, Portable Heaters, Therapeutic Appliances and Variables Speed
