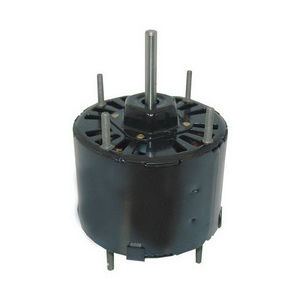

Fasco D228

Fasco® D228 Shaded Pole General Purpose Motor, 1/80 hp, 115/230 V, 0.8 A, 3000 Rpm, 3.3 Inch Frame, 60 Hz, 1 Phase
SKU: 10156
Manufacturer part number: D228
Manufacturer:

Regal-Beloit


Please Sign In to display product price.
Fasco® General Purpose Motor, Shaded Pole, 1/80 hp, 115/230 V, 0.8 A, 60 Hz, 1 Phase, 3.3 Inch Frame, 3000 Rpm, 1 Speed, CWSE Service Factor: 1, 3.3 Inch Body Dia, 1/4 Inch Dia x 2 Inch L Shaft, Sleeve Bearing, Stud Mount, 40 deg C, Class B Insulation, Open Ventilated Air Over

  • 2-1/2 Inch length less shaft
  • 2-27/32 Inch bolt circle
  • Automatic thermal protection
  • Rotation is determined by viewing the shaft end
  • Automatic overload

Standard/Approvals: UL Listed, CSA Certified

Application: HVAC Systems

Products specifications
Attribute nameAttribute value
Amperage Rating0.8 A
Bearing TypeSleeve
Body Diameter3.3 Inch
Enclosure TypeOpen Ventilated Air Over
Frame3.3 Inch
Frequency Rating60 Hz, 1 Phase
Insulation TypeClass B
ManufacturerRegal-Beloit
Mounting TypeStud
Number of Speeds1
Power Rating1/80 hp
Rotation TypeCWSE
Service Factor1
Shaft Size1/4 Inch Dia x 2 Inch L
Speed3000 Rpm
Temperature Rating40 deg C
TypeShaded Pole
Voltage Rating115/230 V
