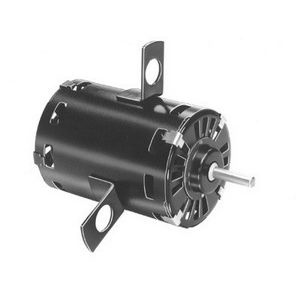

Fasco D1190

Fasco® D1190 Replacement Draft Inducer Motor, 1/30 hp, 115 V, 1.6 A, 3000 Rpm, Frame 3.3 Inch, 60 Hz, 1Phase
SKU: 10101
Manufacturer part number: D1190
Manufacturer:

Regal-Beloit


Please Sign In to display product price.
Fasco® Replacement Draft Inducer Motor, 1/30 hp, 115 V, 1.6 A, 60 Hz, 1 Phase, 3.3 Inch Frame, 3000 Rpm, Shaded Pole, 1 Speed, CW, Service Factor: 1, 3.3 Inch Body Diameter, 5/16 Inch Dia x 1-3/4 Inch L Shaft, Sleeve Bearing, Lug Mount, 35% Efficiency, 40 deg C, Class B Insulation, Open Air Over, Stainless Steel Shaft, Includes: Centrifugal Switch, Shaft Bushing
  • Automatic overload
  • Rotation is determined by viewing the shaft end
  • Thermally protected

Standard/Approvals: CSA Certified, UL Listed

Application: Pumps, Copy Machines, Medical and Dental Equipment, Office Machines, Computer Equipment and Appliances, Portable Heaters and Therapeutic Appliances


Products specifications
Attribute nameAttribute value
Amperage Rating16 A
Bearing TypeSleeve
Body Diameter3.3 Inch
Efficiency35%
Enclosure TypeOpen Air Over
Frame3.3 Inch
Frequency Rating60 Hz, 1 Phase
Housing MaterialStainless Steel Shaft
Insulation TypeClass B
ManufacturerRegal-Beloit
Motor TypeShaded Pole
Mounting TypeLug
Number of Speeds1
Power Rating1/30 hp
Rotation TypeCW
Service Factor1
Shaft Size5/16 Inch Dia x 1-3/4 Inch L
Speed3000 Rpm
Temperature Rating40 deg C
Voltage Rating115 V
