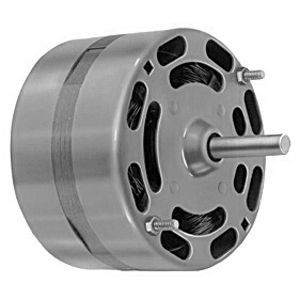

Fasco D116

Fasco® D116 Shaded Pole General Purpose Motor, 1/15 hp, 115 V, 2.4 A, 1500 Rpm, Frame 4.4 Inch, 60 Hz, 1 Phase
SKU: 10083
Manufacturer part number: D116
Manufacturer:

Regal-Beloit


Please Sign In to display product price.
Fasco® General Purpose Motor, Shaded Pole, 1/15 hp, 115 V, 2.4 A, 60 Hz, 1 Phase, 4.4 Inch Frame, 1500 Rpm, 1 Speed, CWSE Service Factor: 1, 4.4 Inch Body Dia, 3/8 Inch Dia x 2-3/8 Inch L Shaft, Sleeve Bearing, Stud Mount, 35% Efficiency, 40 deg C, Class A Insulation, Open Ventilated
  • 3 Inch length less shaft
  • 2-27/32 Inch bolt circle
  • Automatic thermal protection
  • Rotation is determined by viewing the shaft end
  • Automatic overload

Standard/Approvals: UL Listed, CSA Certified


Products specifications
Attribute nameAttribute value
Amperage Rating2.4 A
Bearing TypeSleeve
Body Diameter4.4 Inch
Efficiency35%
Enclosure TypeOpen Ventilated
Frame4.4 Inch
Frequency Rating60 Hz, 1 Phase
Insulation TypeClass A
ManufacturerRegal-Beloit
Mounting TypeStud
Number of Speeds1
Power Rating1/15 hp
Rotation TypeCWSE
Service Factor1
Shaft Size3/8 Inch Dia x 2-3/8 Inch L
Speed1500 Rpm
Temperature Rating40 deg C
TypeShaded Pole
Voltage Rating115 V
