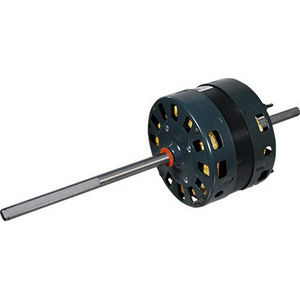

Fasco D1092

Fasco® D1092 Dual Shaft Permanent Split Capacitor Fan and Blower Motor, 1/3 hp, 115 V, 3.4 A, 1675/1080 Rpm, 2-Speed
SKU: 55896
Manufacturer part number: D1092
Manufacturer:

Regal-Beloit


Please Sign In to display product price.
Fasco® Fan and Blower Motor, Dual Shaft, Permanent Split Capacitor, 1/3 hp, 115 V, 3.4 A, 60 Hz, 1 Phase, 42 Frame, 1675/1080 Rpm, 2 Speed, CWLE Capacitor: 7.5 uF at 370 V, 5 Inch Body Dia, 1/2 Inch Dia x 7-15/16 Inch L, 1/2 Inch Dia x 3-1/2 Inch L Shaft, Sleeve Bearing, Thru-Bolt Mount, Mounting Position: Horizontal, 40 deg C, Class B Insulation, Open Air Over

Standard/Approvals: UL Listed, CSA Certified


Products specifications
Attribute nameAttribute value
Amperage Rating3.4 A
Bearing TypeSleeve
Body Diameter5 Inch
Capacitor7.5 uF at 370 V
Enclosure TypeOpen Air Over
Frame42
Frequency Rating60 Hz, 1 Phase
Insulation TypeClass B
ManufacturerRegal-Beloit
Mounting PositionHorizontal
Mounting TypeThru-Bolt
Number of Speeds2
Power Rating1/3 hp
Rotation TypeCWLE
Shaft Size1/2 Inch Dia x 7-15/16 Inch L, 1/2 Inch Dia x 3-1/2 Inch L
Speed1675/1080 Rpm
Temperature Rating40 deg C
TypeDual Shaft, Permanent Split Capacitor
Voltage Rating115 V
