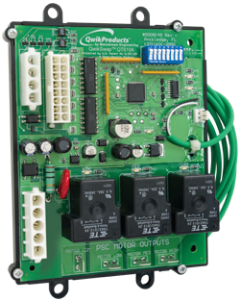

QT6104 QwikSwap® V3 Direct replacement control for any Constant Torque or Variable Air Flow ECM motor up to 1 HP
QwikSwap® V3
Direct replacement for any Constant Torque or Variable Air Flow ECM motor up to 1 HP. The solution is on your truck – No need to wait and pay for that expensive OEM motor replacement. Provides Variable Blower Air Flow (except the X1, QT6101)
Fast replacement without programming; simply transfer the connection from the ECM motor to the QwikSwap board and wire the QwikSwap board to any PSC motor
The low-cost, robust alternative to expensive unreliable ECM motors
Equipped with 6,000 Amp, 100 Joules surge protection on all high voltage circuits
Patent-pending high efficiency designs
QwikSwap®
The ECM Motor Change-Out Solution... That’s On Your Truck!
Direct replacement for any Constant Torque or Variable Air Flow ECM motor up to 1 HP
The solution is on your truck – No need to wait and pay for that expensive OEM motor replacement
Provides Variable Blower Air Flow (except the X1, QT6101)
Fast Replacement, without programming; simply transfer the connection from the ECM motor to the QwikSwap Board and wire the QwikSwap board to any PSC motor
Both the QwikSwap X3 and V3 automatically select the optimum PSC motor blower speed (Low, Medium or High) every time the unit cycles on
Both the QwikSwap X3 and V3 provide improved humidity removal compared to fixed-speed operation (56 % improvement at 82°F, 157% at 97°F outdoor air temperature)
Patent-pending high efficiency designs
Equipped with 6,000 Amp, 100 Joules surge protection on all high voltage circuits
Both the QwikSwap X3 and V3 work with optional Humidity Sensor (QT6001) for enhanced humidity removal
QwikSwap® The Low-Cost, Robust Alternative to Expensive Unreliable ECM Motors
It is impractical to have all the different variations of ECM motors on the truck, so a failed ECM blower motor typically means a trip to the parts house and a few hours wasted.
Now you can have the solution on the truck and save money too.
QwikSwap is a money saving solution that allows the replacement of a failed OEM ECM, X13® or SelecTech® Motor with a lower cost, more reliable, Permanent Split Capacitor (PSC) motor, along with a capacitor.
There is a QwikSwap board for every type of ECM motor...
and it is a solution you can have on the truck, with no custom programming required. QwikSwap boards operate with any PSC motor up to 1 horsepower, either 120 or 240 VAC single phase.
