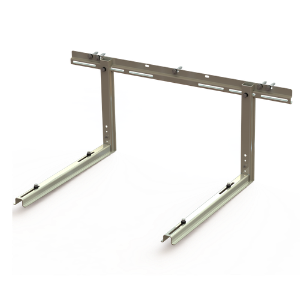

Quick Sling QSWB2004 Large Wall Bracket with Rail and 2 Arms, Steel, 350lb.
Large Wall Bracket with Rail and 2 Arms, Steel
Item#: QSWB2004
The Quick-Sling® QSWB2004 is an extra large flat wall or siding mounted bracket. The QSWB2004 includes a slider track which allows the shelf/arms to adjust from 11 - 40 in. widths. The Quick Sling line of wall brackets provide a quick, safe, and stable way to mount an outdoor mini-split unit to multiple types of wall structures. They are designed for easy access during installation, service, and maintenance. The rated capacity is 350 lbs.
Product Features & Benefits
Made from powder coated 14 gauge steel
Larger size for bigger equipment footprints: 44 in. wide, 29 in. shelf depth
Slider track allows the shelf/arms to adjust from 11 - 40 in. widths.
Designed to be mounted into framing studs at 12 in. or 16 in. on center
Six points of vibration isolation with 50 durometer rubber washers
Mounting arm/shelf is pre-slotted for quick unit mounting
Online product selector tool provides quick equipment compatibility matches as well as access to drawings and documentation
All necessary hardware included
350 lbs. load capacity
Specifications
Includes: Hardware_Vibration Isolation
Adjustable: Yes
Base / Mount: Wall
Application: Ductless Condenser
Load Capacity: 350 lb.
Material: Powder Coated Steel
Rating: Not Rated
Arm or Shelf Length: 29 in.
Mounting Method: Concrete_Siding_Block_Brick_Stucco
No. of Arms: 2
Product Width: 44 in.
Ducted or Ductless: Ductless
