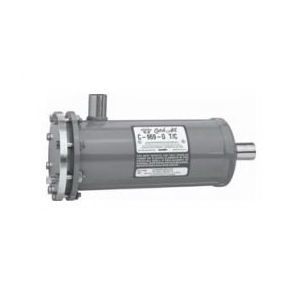

Sporlan C-40033-G

Sporlan Catch-All® Replaceable Core Suction Line Filter Dryer with 1/4 Inch Female Pipe, 4-1/8 Inch ODF Solder, 650 psi
SKU: 1079
Manufacturer part number: C-40033-G
Manufacturer:

Parker Hannifin


Please Sign In to display product price.
Sporlan Catch-All® Suction Line Filter Dryer, Replaceable Core, R-134a, R-22, R-404, R-507, R-407C and R-410A, 4-1/8 Inch ODF Solder, 400 cu-Inch Desiccant, 650 psi, 35.12 Inch Overall Length, Steel, Epoxy Powder Coating, 7-1/2 Inch Dia

  • The internal parts are plated steel – no plastic parts
  • The seal gasket prevents solid contaminants from bypassing the filter. The assembly is held tight against the gasket by a spring. O-rings are used with the secondary filter to provide a tight seal
  • The bolt and nut attachment of the endplate allows for simple, trouble-free installation. The nuts lock against the side of the shell for ease in tightening. Other designs, using cap screws threaded into the flange ring, run the risk of twisting off the head of the screw making removal difficult
  • The shell exterior uses an epoxy powder coating to prevent corrosion even under the most adverse conditions

Standard/Approvals: UL Listed

Products specifications
Attribute nameAttribute value
Connection Type4-1/8 Inch ODF Solder
Desiccant Volume400 cu-Inch
Dimensions7-1/2 Inch Dia
FinishEpoxy Powder Coating
ManufacturerParker Hannifin
MaterialSteel
Overall Length35.12 Inch
Pressure Rating650 psi
Refrigerant TypeR-134a, R-22, R-404, R-507, R-407C and R-410A
SeriesCatch-All®
TypeReplaceable Core
