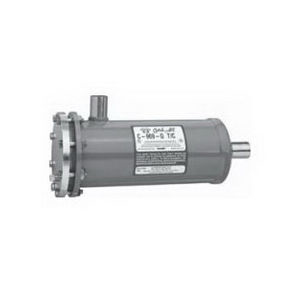

Sporlan Catch-All® Liquid Line Filter Dryer, Replaceable Core, R-12, R-134a, R-404A, R-502 and R-507, 2-1/8 Inch ODF Solder, 300 cu-Inch Desiccant, 28.06 7 Inch Overall Length, Steel, Epoxy Powder Coating, 7-1/2 Inch Dia
- The internal parts are plated steel – no plastic parts
- The bolt and nut attachment of the endplate allows for simple, trouble-free installation. The nuts lock against the side of the shell for ease in tightening
- The internal construction is designed to improve ease of assembly. The molded cores simply slide over the center tube, followed by spacer plates(if applicable). The outlet plate is fastened to the assembly by a wing screw. With the addition of a spring, the resulting assembly is easy to install and remove
- The seal gasket prevents solid contaminants from bypassing the filter. The assembly is held tight against the gasket by a spring. O-rings are used with the secondary filter to provide a tight seal
Standard/Approvals: UL Listed
