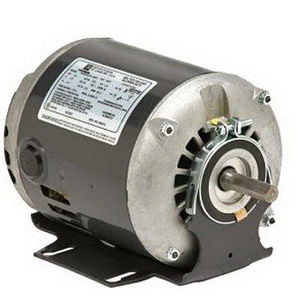

U.S. MOTORS® 1/4 hp, Belt Drive Fan Motor, Continuous Duty, Split Phase, 115 V, 5.3 A, 60 Hz, 1 Phase, 48 Frame, 1725 Rpm, 1 Speed, Reversible, Service Factor: 1.35, 5-5/8 Inch Body Diameter, 1/2 Inch Dia x 1-1/2 Inch L Shaft, Ball Bearing, Resilient Base Mount, Mounting Position: All Angle, 51% Efficiency, 40 deg C, Class B Insulation, Open Drip Proof
- Automatic reset thermal overload protector
- Resilient base, includes shaft adapter for 5/8 Inch-shaft
- Easily reversible at terminal board
- Combination mounting holes for NEMA 48 and 56 frame dimensions
- Not recommended where automatic reset creates a hazard
- Open drip-proof design
Standard/Approvals: CSA Certified
