U.S. MOTORS 5464

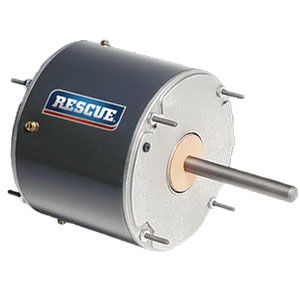

U.S. MOTORS® 5464 Permanent Split Capacitor Condenser Fan Motor, 1/3 - 1/6 hp, 208/230 V, 1.9 - 1 A, 825 Rpm
SKU: 2150
Manufacturer part number: 5464

Please Sign In to display product price.
U.S. MOTORS® Condenser Fan Motor, Permanent Split Capacitor, 1/3 - 1/6 hp, 208/230 V, 1.9 - 1 A, 60 Hz, 1 Phase, 48 Frame, 825 Rpm, 2 Speed, Reversible, Service Factor: 1, Capacitor: 10 - 7.5 uF, 5-5/8 Inch Body Diameter, 10.3 Inch Overall Length, 1/2 Inch Dia x 5 Inch L Shaft, Ball Bearing, Stud Mount, Mounting Position: All Angle, 64.6% Efficiency, 60 deg C, Class F Insulation, Totally Enclosed Air Over
  • Automatic reset thermal overload protector
  • Designed for use with 370 V capacitors
  • Continuous duty
  • High efficiency design
  • Special treated rotor for corrosion protection
  • Includes lead end mounting holes for rheem or trane units

Application: Commercial and Residential


Products specifications
Attribute nameAttribute value
Amperage Rating1.9 - 1 A
Bearing TypeBall
Body Diameter5-5/8 Inch
Capacitor10 - 7.5 uF
Efficiency64.6%
Enclosure TypeTotally Enclosed Air-Over
Frame48
Frequency Rating60 Hz, 1 Phase
Insulation TypeClass F
ManufacturerNidec Motor Corporation
Mounting PositionAll Angle
Mounting TypeStud
Number of Speeds2
Overall Length10.3 Inch
Power Rating1/3 - 1/6 hp
Rotation TypeReversible
Service Factor1
Shaft Size1/2 Inch Dia x 5 Inch L
Speed825 Rpm
Temperature Rating60 deg C
TypePermanent Split Capacitor
Voltage Rating208/230 V
