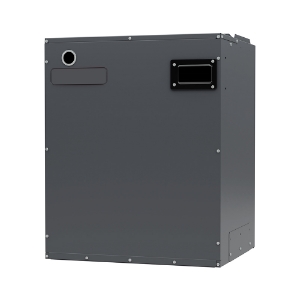

MBVB12BP1X00 Modular Blower, 1200 CFM, ECM, ComfortBridge Protocol, 17.5" Width
MBVB Multi-position, Variable speed ECM-based, Modular Blower, Comfortbridge™ Compatible
Multi-Position, Variable-Speed
ECM-Based, Modular Blower
Comfortbridge™ Compatible
Product Features
• Variable-speed ECM blower motor
• Integrated communicating Comfortbridge™ Technology
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
• Advanced configuration of the airflow and tonnage in communicating mode
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for efficient fan-only operation
• Improved humidity and comfort control
• Built-in compatibility with multi-stage heat pump and cooling applications
• Blower section usable as electric heater
• AHRI certified; ETL listed
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Cabinet air leakage less than 2% at 1.0 inch H₂0 when tested in accordance with ASHRE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂0 when tested in accordance with ASHRE standard 193
• Field Installed 3 kW – 25 kW electric heater kits available
Warranty
The MBVB and MBVK air handler models come with a 10-year parts Limited Warranty where online registration is completed within 60 days of installation.
Model: MBVB12BP1X00
Airflow Class: 1200 CFM
Motor: Variable‑speed ECM
Voltage: 208/230V, 1‑phase, 60 Hz
MCA: 4.9 A
MOP: 15 A
Blower Wheel: 10" diameter × 8" width
Blower Motor HP: 1/2 HP
Cabinet Width: 17.5"
Cabinet Depth: 21"
Cabinet Height: 26"
Ship Weight: 67 lbs
Cooling Airflow Range: 420–1210 CFM depending on tap (A–D)
Communicating Protocol: ComfortBridge
Certifications: AHRI Certified, ETL Listed, UL 60335‑2‑40 Compliant
