Mars 90971

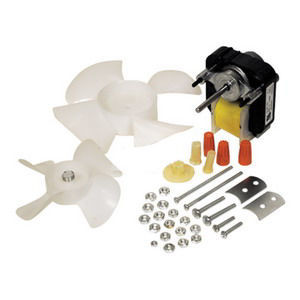

Mars® 90971 Shaded Pole Evaporator Fan Motor Kit, 1/130 hp, 120 V, 0.41 A, 1-Speed, 3000 Rpm, Frame C, 60 Hz, CW
SKU: 3614
Manufacturer part number: 90971
Manufacturer:

Mars


Please Sign In to display product price.
Mars® Evaporator Fan Motor Kit, Shaded Pole, 1/130 hp, 120 V, 0.41 A, 60 Hz, C-Frame, 3000 Rpm, 1 Speed, CW, 3/16 Inch Dia x 1.58 Inch L Shaft, Sleeve Bearing, Mounting Position: Horizontal/Vertical, 50 deg C, Class B Insulation, Open
  • Sleeve bearings
  • All-angle mount
  • Impedance protection
  • Recirculating oil system
  • The motor features a specially designed recirculating oil system for long life

Standard/Approvals: CSA Certified, UL Listed


Products specifications
Attribute nameAttribute value
Amperage Rating0.41 A
Bearing TypeSleeve
Enclosure TypeOpen
FrameC
Frequency Rating60 Hz
Insulation TypeClass B
ManufacturerMars
Mounting PositionHorizontal/Vertical
Number of Speeds1
Power Rating1/130 hp
Rotation TypeCW
Shaft Size3/16 Inch Dia x 1.58 Inch L
Speed3000 Rpm
Temperature Rating50 deg C
TypeShaded Pole
Voltage Rating120 V
