Mars 00503

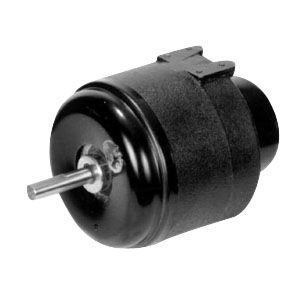

Mars® 002 Shaded Pole Condenser Fan Motor, 50 W, 230 V, 0.85 A, 1500 Rpm, Frame 51, 60 Hz, 1 Phase, 1-Speed, CW
SKU: 3511
Manufacturer part number: 00503
Manufacturer:

Mars


Please Sign In to display product price.

Mars® 002 Condenser Fan Motor, Shaded Pole, 50 W, 230 V, 0.85 A, 60 Hz, 1 Phase, 51 Frame, 1500 Rpm, 1 Speed, CW, 3/8 Inch Dia x 1-1/2 Inch L Shaft, Cast Iron Unit Bearing, End/Side Pad Mount, 40 deg C, Class B Insulation, Totally Enclosed Air Over
'

  • The ESP line of motors is a unique and patented design that makes possible a higher output in a smaller frame
  • Horizontal operation
  • Threaded or smooth shaft
  • Heat isolated oil pump and reservoir
  • Overload protection
  • 22 Inch leads

'

'

'

Standard/Approvals: CSA Certified, UL Listed


Products specifications
Attribute nameAttribute value
Amperage Rating0.85 A
Bearing TypeCast Iron Unit
Enclosure TypeTotally Enclosed Air-Over
Frame51
Frequency Rating60 Hz, 1 Phase
Insulation TypeClass B
ManufacturerMars
Mounting TypeEnd/Side Pad
Number of Speeds1
Power Rating50 W
Rotation TypeCW
Series002
Shaft Size3/8 Inch Dia x 1-1/2 Inch L
Speed1500 Rpm
Temperature Rating40 deg C
TypeShaded Pole
Voltage Rating230 V
