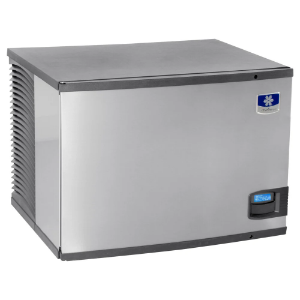

Manitowoc® IYP0450A-161 Indigo™ NXT Modular Ice Machine, 3/8 x 1-1/8 x 7/8 Inch Half Dice Ice, 478 lb Per Day, Air Cooled, 30 Inch W
FEATURES
Sanitation
– Hinged front door and removable components (water trough, tube, curtain, probe, pump) allow easy interior access and cleaning.
– Select parts feature AlphaSan® antimicrobial protection.
– DuraTech™ exterior provides superior corrosion resistance compared to stainless steel. Innovative clear coat resists finger prints and dirt.
– Optional LuminIce® Growth Inhibitor helps control bacteria and yeast, with status indicator on display.
Sustainability & Value
– R290 offers low global warming potential and zero ozone depletion.
– Energy-efficient models (see EnergyStar.gov)
– Icon-based easyTouch® display simplifies operation.
– Acoustical probe and Active Sense help ensure consistent ice production.
– 24-hour diagnostics support preventative maintenance.
– Designed with programmable ice production to take advantage of off‑peak rates and/or shut off over night to lower lifetime costs.
– Connect via Bluetooth for quick setup and instant machine information.
ACCESSORIES
LuminIce® II virus and bacteria inhibitor helps control viruses and bacteria in the ice machine.
iAuCS® schedules and performs routine ice machine descaling or sanitizing automatically.
Arctic Pure® Pro water filters reduce sediments and chlorine contaminants down to 0.5 microns.
For optimal performance, use the Arctic Pure prefilter in combination with the Arctic Pure primary filter.
SPECIFICATIONS
Dice: 3⁄8" x 1 ⅛" x 7⁄8", (0.95 x 2.86 x 2.22 cm)
Up to 478 lbs (216 kgs) of daily ice production
30" (76.20 cm) wide, 24" (86.36 cm) deep, and 21.5" (54.61 cm) high
Refrigerant: R290
Operating Limits
Ambient temperature range: 40˚ to 110˚F (4.4˚ to 43.3˚C)
Water temperature range: 40˚ to 90˚F (4.4˚ to 32.2˚C)
Water pressure ice maker (water in)
– Min. 20 psi (137.9 kPA)
– Max. 80 psi (551.1 kPA)
Power: 115/60/1 and 230/60/1
Air-cooled-115V
– Minimum circuit ampacity: 11.9 amps
– Maximum fuse size: 20 Amps
Indigo NXT Series iP0450 – R290, 60 HZ
W x D x H 30" x 24" x 21-1/2", 76.2cm x 60.96cm x 54.6cm
Weight 170lb, 77 kg
Commercial Warranty
Ice Maker - 3 Year Parts and Labor
Evaporator - 5 Year Parts and Labor
Compressor - 5 Year Parts, 3 Year Labor
Standard/Approvals: cULus Listed, CE Certified, NSF Approved, AHRI Certified, California Low Lead Qualified
