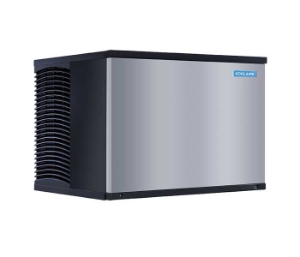

Koolaire KYP0300A-161 Ice Machine, Air Cooled, Full Kube, 366 lb. production, R290, 115V
KP0300 Ice Cube Machine – R290
Produces up to 366 lbs (166 kg) of ice daily. Koolaire by Manitowoc delivers exactly what you need—dependable performance, essential features, and a price that respects your budget. Designed for simplicity and built for reliability.
ICE SHAPE
Half-Dice: 3⁄8" x 1 ⅛" x 7⁄8", (0.95 x 2.86 x 2.22 cm)
ICE PRODUCTION
Up to 366 lbs (166 kg) of daily ice production
FEATURES / BENEFITS
AHRI performance certified
Energy-efficient models (see EnergyStar.gov)
Durable nickel-plated copper evaporators (Made in Manitowoc, WI)
Simple 3-position control: ON / OFF / CLEAN
Smudge-resistant stainless-like exterior
R290 offers a 99.86% GWP reduction compared to R410A
Front-facing evaporator for easy access
One-touch cleaning—just add chemical, no ice removal needed
Tool-free removal of food zone components
Smooth, white plastic interior for quick wipe-downs
Sealed food zone with commercial-grade gaskets
Alpha San antimicrobial protection in key parts
R290 Refrigerant
– Uses R290, a natural refrigerant with low global warming potential.
CleanAir™ Pack (Optional)
– Helps control the growth of bacteria and fungi that cause slime and odors in the food zone.
Easy Maintenance
– Access the food zone quickly—just remove two screws and lift off the door.
Smudge-Resistant Finish
– High-tech exterior with a stainless-like surface that resists fingerprints and smudges.
Tool-Free Cleaning
– Water shield, distribution tube, pump, floats, and trough can be removed by hand for easy cleaning.
Bright Interior
– White plastics in the food zone make it easier to spot areas that need attention.
Warranty Coverage
– Ice Maker: 3 years parts & labor
– Evaporator: 5 years parts & labor
– Compressor: 5 years parts, 3 years labor
SPECIFICATIONS
Luminice II Thermostat Kit Arctic Pure Water Filters
Up to 366 lbs (166 kg) of daily ice production
30" (76.20 cm) wide, 24.5" (62.2 cm) deep, and 21.5" (54.61 cm) high
Refrigerant: R290
Operating Limits
Ambient temperature range: 40˚ to 110˚F (4.4˚ to 43.3˚C)
Water temperature range: 40˚ to 90˚F (4.4˚ to 32.2˚C)
Water pressure ice maker (water in)
– Min. 20 psi (137.9 kPA)
– Max. 80 psi (551.1 kPA)
Power
115/60/1 standard
– Minimum circuit ampacity: 8.2
– Maximum Fuse Size: 15 Amps (115V)
ACCESSORIES
LuminIce® II Virus and Bacteria Inhibitor
– Controls viruses and bacteria in the ice machine.
Dispenser Bin Thermostat Kit
– Reduces condensation when used with dispensers.
Arctic Pure® Water Filters
– Reduce sediments and chlorine contaminants down to 0.5 microns.
For optimal performance, use the Arctic Pure Pro prefilter in combination with the Arctic Pure primary filter.
