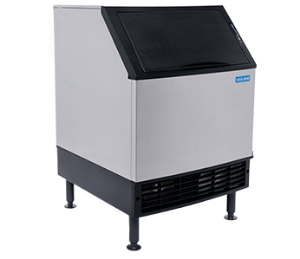

Koolaire KYP0150A-161B Undercounter Ice Machine, Air Cooled, Half Kube, 148 lb. production, R290, 115V
KYP0150 Ice Cube Machine – R290
Produces up to 146 lbs (66.2 kg) of ice daily. Koolaire by Manitowoc delivers exactly what you need—dependable performance, essential features, and a price that respects your budget. Designed for simplicity and built for reliability.
ICE SHAPE
Half-Dice: 3⁄8" x 1 ⅛" x 7⁄8", (0.95 x 2.86 x 2.22 cm)
ICE PRODUCTION
Up to 148 lbs (66.2 kg) of daily ice production
FEATURES
Design & Durability
– Durable cabinet features a clean, coordinated interior for long‑lasting performance.
– Slide-up bin door design allows unobstructed access for easy use and cleaning.
– Flat, right-angle plug simplifies installation in tight spaces.
Functionality & Innovation
– Integrated ice maker and bin perfect for small-volume applications.
– Proprietary vertical evaporator technology engineered in Manitowoc, Wisconsin, for reliable ice production.
Performance & Placement
– R290 refrigerant environmentally responsible and efficient.
– Compact footprint is ideal for space-constrained environments.
– Front airflow enables under‑counter or adjacent placement.
– Optional floor‑sealing configuration with legs not installed, remains front‑serviceable.
Sanitation & Maintenance
– Alphasan® antimicrobial protection is built into key internal components to support extended cleaning intervals.
– Patented cleaning and sanitizing system helps ensure thorough and efficient maintenance.
– Simple, tool-free, drop-down access to the air filter.
– Easy-access air filter is designed for longer operation in greasy or dusty environments.
– Tool‑free filter removal for faster cleaning and greater installation flexibility.
– Removable, forward-sliding storage bin allows for easy access to refrigeration components for cleaning and maintenance.
R290 Refrigerant
– Uses R290, a natural refrigerant with low global warming potential.
CleanAir™ Pack (Optional)
– Helps control the growth of bacteria and fungi that cause slime and odors in the food zone.
Easy Maintenance
– Access the food zone quickly—just remove two screws and lift off the door.
Smudge-Resistant Finish
– High-tech exterior with a stainless-like surface that resists fingerprints and smudges.
Tool-Free Cleaning
– Water shield, distribution tube, pump, floats, and trough can be removed by hand for easy cleaning.
Bright Interior
– White plastics in the food zone make it easier to spot areas that need attention.
Warranty Coverage
– Ice Maker: 3 years parts & labor
– Evaporator: 5 years parts & labor
– Compressor: 5 years parts, 3 years labor
SPECIFICATIONS
Refrigerant: R290, 4.9 oz (140 g)
BTU Per Hour
– 2,500 (average)
– 2,900 (peak)
Operating Limits:
Ambient temperature range: 40˚ to 100˚F (4.4˚ to 37.7˚C)
Water temperature range: 40˚ to 90˚F (4.4˚ to 32.2˚C)
Water pressure ice maker (water in)
– Min. 20 psi (137.9 kPA)
– Max. 80 psi (551.1 kPA)
Power:
115/60/1 ice machines are factory pre-wired with a 6 ft (180 cm) power cord and NEMA 5‑15P-plug configuration.
Total Amps
– 5.0 amps
Maximum Fuse Size
– 15 amps
– HACR-type circuit breakers can be used in place of fuses
ACCESSORIES
LuminIce® II Virus and Bacteria Inhibitor helps controls viruses and bacteria in the ice machine.
Arctic Pure® Water Filters
– Reduce sediments and chlorine contaminants down to 0.5 microns.
– Use with a pre-filter is recommended.
