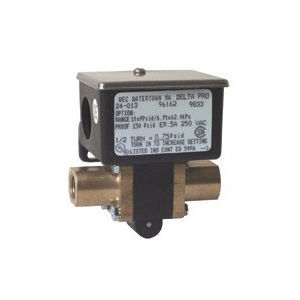

Kele 24-014

Kele™ 24 Differential Pressure Switch, 4 - 45 psi, SPDT, 1/4 Inch FNPT, 10 Million Cycles, 30 - 160 deg F
SKU: 70127
Manufacturer part number: 24-014
Manufacturer:

Kele


Please Sign In to display product price.
Kele™ 24 Differential Pressure Switch, 4 - 45 psi, 150 psi Maximum, SPDT, 1/4 Inch FNPT, 5A Resistive and Inductive at 125/250 VAC, 5 A Resistive and 3 A Inductive at 30 VDC, 10 Million Cycle, 30 - 160 deg F, Screw Terminals 16 AWG Wire, 7/8 Inch Hole x 1/2 Inch NPT Conduit Connector, Brass Connector, Polyurethane Diaphragm, Zinc Plated Steel Cover Housing, NEMA 4
  • SPDT switch with screw terminals
  • Strong, corrosion-resistant polyester enclosure
  • External, multiturn adjusting screw for excellent resolution
  • Corrosion-resistant brass port
  • Front accessible holes for surface mounting

Products specifications
Attribute nameAttribute value
Connection Type1/4 Inch FNPT
Connector MaterialBrass
Contact FormSPDT
Diaphragm MaterialPolyurethane
Enclosure TypeNEMA 4
Housing MaterialZinc Plated Steel Cover
ManufacturerKele
Maximum Pressure150 psi
Operating Cycles10 Million Cycle
Pressure Range4 - 45 psi
Series24
Temperature Range30 - 160 deg F
