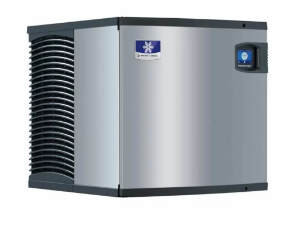

Manitowoc® IYP0620A-161 Indigo™ NXT Modular Ice Machine, 3/8 x 1-1/8 x 7/8 Inch Half Dice Ice, 537 lb Per Day, Air Cooled, 22 Inch W
Indigo NXT Series iP0620 – R290, 115V 60 HZ
Produces up to 537 lbs (244 kgs) of ice daily.
FEATURES
Sanitation
– Hinged front door and removable components (water trough, tube, curtain, probe, pump) allow easy interior access and cleaning.
– Select parts feature AlphaSan® antimicrobial protection.
– DuraTech™ exterior provides superior corrosion resistance compared to stainless steel. Innovative clear coat resists finger prints and dirt.
– Optional LuminIce® Growth Inhibitor helps control bacteria and yeast, with status indicator on display.
Sustainability & Value
– R290 offers low global warming potential and zero ozone depletion.
– Icon-based easyTouch® display simplifies operation.
– Acoustical probe and Active Sense help ensure consistent ice production.
– 24-hour diagnostics support preventative maintenance.
– Designed with programmable ice production to take advantage of off‑peak rates and/or shut off over night to lower lifetime costs.
– Connect via Bluetooth for quick setup and instant machine information.
OPTIONAL ACCESSORIES
LuminIce® II virus and bacteria inhibitor helps control viruses and bacteria in the ice machine.
iAuCS® schedules and performs routine ice machine descaling or sanitizing automatically.
Arctic Pure® Pro water filters reduce sediments and chlorine contaminants down to 0.5 microns.
For optimal performance, use the Arctic Pure prefilter in combination with the Arctic Pure primary filter.
SPECIFICATIONS
Half Dice: 3/8" x 1-1/8" x 7⁄8", (0.95 x 2.86 x 2.22 cm)
Up to 537 lbs (244 kgs) of daily ice production
22" (55.88 cm) wide, 34" (86.36cm) deep and 21.5" (54.81 cm)
Refrigerant: R290
Operating Limits
Ambient temperature range: 35˚ to 110˚F (1.7˚ to 43.3˚C)
Water temperature range: 40˚ to 90˚F (4.4˚ to 32.2˚C)
Water pressure ice maker (water in)
– Min. 20 psi (137.9 kPA)
– Max. 80 psi (551.1 kPA)
Power: 115/60/1
Air-cooled-115V
– Minimum circuit ampacity: 13 amps
– Maximum fuse size: 20 amps
Indigo NXT Series iP0620 – R290, 115V 60 HZ
W x D x H 22" x 34" x 21-1/2", 55.9cm x 86.4cm x 54.81cm
Weight 132 lb, 58.87 kg
Commercial Warranty
Ice Maker - 3 Year Parts and Labor
Evaporator - 5 Year Parts and Labor
Compressor - 5 Year Parts, 3 Year Labor
Standard/Approvals: cULus Listed, CE Certified, NSF Approved, AHRI Certified, California Low Lead Qualified
