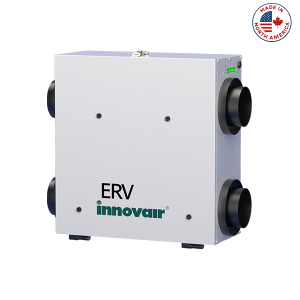

Innovair ISALE150S Energy Recovery Ventilator, 150 CFM, Side Port, 120V
ISALE150S Energy Recovery Ventilator (ERV)
The ISALE150S is an Energy Recovery Ventilator designed for compact residential applications where balanced ventilation and energy recovery are required. It delivers 150 CFM airflow with 63 percent sensible recovery efficiency at 0°C, using a slim 9‑inch housing and 5‑inch duct ports. The unit is engineered for apartments, condos, and small homes where ceiling‑mount or tight‑space installation is necessary.
Product Function and Purpose
- Exchanges stale indoor air with fresh outdoor air while recovering heat and humidity.
- Maintains balanced ventilation in small to medium residential spaces.
- Uses a polymer energy‑recovery core to transfer heat and moisture between air streams.
- Provides quiet, efficient operation with electronically balanced airflow.
Performance and Capabilities
- Airflow: 150 CFM at 0 in.w.g.
- Sensible Recovery Efficiency: 63 percent at 0°C (30 L/s)
- Energy Recovery Core: Polymer, washable, antimicrobial, AHRI 1060 certified
- Motor: Sealed, energy‑efficient motor with auto‑reset thermal protection
- Balancing: Electronic airflow adjustment with integrated pressure ports
- Noise: Factory balanced for quiet operation
- Voltage: 120V, 60Hz, 1A
Construction and Installation
- Slim 9‑inch (229 mm) housing for tight spaces
- Weight: 33 lb (15 kg)
- Housing: 24‑gauge galvanized steel, pre‑painted white
- Duct Ports: 5‑inch (127 mm)
- Mounting: Ceiling‑mounted or suspended with included nylon straps
- Configurations: Side‑port or top‑port models; reverse‑airflow option available
- No drain required
Controls and Compatibility
- Wall Control: Requires SA‑LT15 (not included)
- Modes: Intermittent (20/40), continuous, off, and 20/40/60‑minute timer
- Furnace interconnect plug included from factory
Certifications and Safety
- Meets ASHRAE 90.1‑2010 requirements
- ISO846 antimicrobial protection
- ASTM F‑1671 tested for virus transfer resistance
- UL94 HB flammability tested
Uses KIT-SA-FI-115 Carbon Filter Kit, (2)
