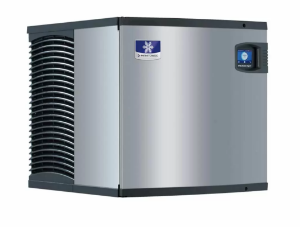

Manitowoc® IDP0420A-161 Indigo™ NXT Modular Ice Machine, 7/8 x 7/8 x 7/8 Inch Full Dice Ice, 463 lb Per Day, Air Cooled, 22 Inch W
IDP0420A-161
Indigo NXT Series iP0420 – R290, 60 HZ
Produces up to 463 lbs (211 kgs) of ice daily.
FEATURES
Sanitation
– Hinged front door and removable components (water trough, tube, curtain, probe, pump) allow easy interior access and cleaning.
– Select parts feature AlphaSan® antimicrobial protection.
– DuraTech™ exterior provides superior corrosion resistance compared to stainless steel. Innovative clear coat resists finger prints and dirt.
– Optional LuminIce® Growth Inhibitor helps control bacteria and yeast, with status indicator on display.
Sustainability & Value
– R290 offers low global warming potential and zero ozone depletion.
– Icon-based easyTouch® display simplifies operation.
– Acoustical probe and Active Sense help ensure consistent ice production.
– 24-hour diagnostics support preventative maintenance.
– Designed with programmable ice production to take advantage of off‑peak rates and/or shut off over night to lower lifetime costs.
– Connect via Bluetooth for quick setup and instant machine information.
ACCESSORIES
LuminIce® II virus and bacteria inhibitor helps control viruses and bacteria in the ice machine.
iAuCS® schedules and performs routine ice machine descaling or sanitizing automatically.
Arctic Pure® Pro water filters reduce sediments and chlorine contaminants down to 0.5 microns.
For optimal performance, use the Arctic Pure prefilter in combination with the Arctic Pure primary filter.
SPECIFICATIONS
Dice: 7⁄8" x 7⁄8" x 7⁄8", (2.22 x 2.22 x 2.22 cm)
Up to 463 lbs (211 kgs) of daily ice production
22" (55.88 cm) wide, 34" (86.36cm) deep, and 21.5" (54.81 cm) high
Refrigerant: R290
Operating Limits
Ambient temperature range: 40˚ to 110˚F (4.4˚ to 43.3˚C)
Water temperature range: 40˚ to 90˚F (4.4˚ to 32.2˚C)
Water pressure ice maker (water in)
– Min. 20 psi (137.9 kPA)
– Max. 80 psi (551.1 kPA)
Power: 115/60/1
Air-cooled-115V
– Minimum circuit ampacity: 12 amps
– Maximum fuse size: 20 amps
Indigo NXT Series iP0420 – R290, 115V 60 HZ
W x D x H 22" x 34" x 21-1/2", 55.9cm x 86.4cm x 54.6cm
Weight 131 lb, 59.42 kg
Commercial Warranty
Ice Maker - 3 Year Parts and Labor
Evaporator - 5 Year Parts and Labor
Compressor - 5 Year Parts, 3 Year Labor
Standard/Approvals: cULus Listed, CE Certified, NSF Approved, AHRI Certified, California Low Lead Qualified
