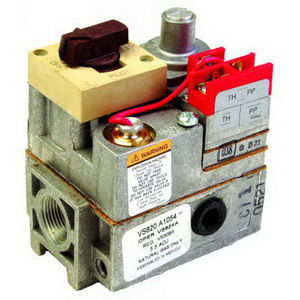

Honeywell VS820 Gas Valve, Multi-Tapped, Standard Opening, Straight-Through, 3/4 Inch, NPT, 0.5 psi, Standing Pilot Ignition, 34000 - 425000 BtuH, Natural Gas, 750 mV Coil, Combination Screw and 1/4 Inch Male Quick Connects, 32 - 175 deg F, 4-3/4 Inch H x 4-1/16 Inch W x 3-3/16 Inch D, Includes: (2) 3/4 x 1/2 Inch Reducer Bushing and (1) 1/2 x 3/8 Inch Reducer Bushing
- Easy to install, adjust and service; all adjustments and connections are accessible from top of control
- Add separate energy cutoff (eco) where codes call for dual safety shut-off
- Complete safety shut-off on pilot flame failure
- Lite-rite (off-pilot-on) lighting sequence
- Mounting: 0 to 90 deg in any direction from the upright position of the gas control knob, including vertically
- Include pilot flow adjustment screw
- Controls include a manual gas valve, safety shut-off, single millivoltage automatic operator and pressure regulator
- Pilot gas outlet: compression fitting for 1/4 Inch OD tubing
- Pressure tapping: outlet pressure tap, 1/8 Inch NPT with plug
- Pressure regulator setpoint: 3.5 Inch WC
Standard/Approvals: CSA 112395, UL MCCZ2.MH5323
Application: Used on Gas Fired Standing Pilot Appliances
