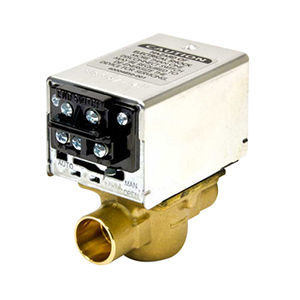

Honeywell V8043 Zone Valve, 2-Way, Normally Closed, Straight-Through, 3/4 Inch, Sweat, 300 psi, 3.5 Cv, 24 VAC, 50/60 Hz, 0.32 A, 50 - 200 deg F Water, 20 psi Differential, Time Cycle: 15 sec Open, Screw Terminal Block, Brass, 4 Inch H x 3-1/2 Inch W x 2-3/8 Inch D, Includes: 1/2 Inch Conduit Connection, Manual Opening Lever and Spring Return
- 2-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water
- Manual opener (on all models, except straight through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored
- All models may be installed without disassembling the valve
- Compact construction for easy installation
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
- Actuator motor may be replaced without removing the valve body or draining the system
- 7.7 VA power consumption
- Brass seat, stainless steel stem, Buna-N (NBR) rubber ball and EPDM o-rings
- End switch rating: 50 VA pilot duty at 24 V, 4.4 A running with 26.4 A inrush at 120 V
- Auxiliary end switch: NO SPST
Standard/Approvals: UL MH11826
