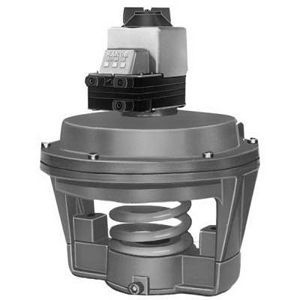

Honeywell MP983E Valve Actuator, Direct Acting, Spring Return, 1-1/2 Inch Stroke, 25 psi, 0 - 140 deg F, For Use With: Valves with Bonnet Size 1-7/8 Inch, Includes: Stem Extension Assembly and Positive Positioner with 5 psi Range
- Rolling diaphragm for long life and low hysteresis
- Easily attached to valve
- Can be installed after piping valve
- Slide lock feature permits simple engagement to valve stem
- Direct or reverse action control
- 13 Inch diaphragm
- Pneumatic valve actuator
- Operating humidity range 5 to 95% RH
- Pilot: barbed fitting for 5/32 Inch OD plastic tubing, Main: barbed fitting for 1/4 Inch OD plastic tubing
- 13 Inch dia x 18-1/8 Inch H
Application: HVAC Systems
