Honeywell M847D-ZONE

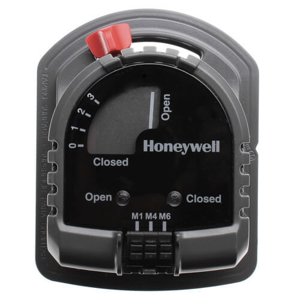

Honeywell M847D-ZONE Direct Mount Damper Motor Actuator, 2-Position, Fail-Safe Mode Spring Return, 24 V, 60 Hz
SKU: 88635
Manufacturer part number: M847D-ZONE
Manufacturer:

Honeywell


Please Sign In to display product price.

Overview

The M847D is a two-position, 24 Vac spring return actuator designed to operate ARD, EARD and ZD zone dampers.

Features

Low voltage, spring-return damper actuator.

  • Equipped with anti-rotation and driveshaft extensions for direct mounting to 7/16 inch diameter coupling style dampers.
  • Adjustable range stops.
  • Direct replacement for M847D1004

Products specifications
Attribute nameAttribute value
Fail Safe ModeSpring Return
Control Signal2-Position
Dimensions4-1/2 Inch H x 2-3/8 Inch W x 3-3/8 Inch D
FinishZinc Plated
ManufacturerHoneywell
MaterialSteel, Anodized Aluminum
Rotation AngleCCW
SeriesM847D
Stroke90 deg
Temperature Rating40 - 140 deg F
Timing30 sec Powered/10 sec Spring Return
TypeDirect Mount
Voltage Rating24 V, 60 Hz
