Sorry - this product is no longer available

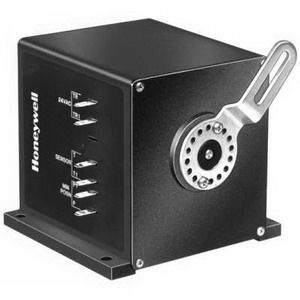

Honeywell M7215A1008

Honeywell M7215A Foot Mount Damper Actuator, 2/10 VDC, Spring Return, 25 Inch-lb, 90 sec, 8 VA Driving, 3 VA Holding
SKU: 54963
Manufacturer part number: M7215A1008
Manufacturer:

Honeywell


Please Sign In to display product price.

Honeywell M7215A Damper Actuator, Foot Mount, Control Signal: 2/10 VDC, Fail Safe Mode: Spring Return, 25 Inch-lb, 24 VAC, 60 Hz, 8.7 VA, 90 sec, 90 deg Stroke, Synchronous Motor, 8 VA Driving, 3 VA Holding, Quick Connect, -25 to 125 deg F, Plastic Housing, 4-1/2 Inch H x 5 Inch W x 5-3/16 Inch D, Includes: Terminal Housing, Cover Plate and Mounting Screws

  • Synchronous motor
  • Quiet, high efficiency drive motor
  • Spring returns motor shaft to normal position in the event of power failure
  • High impact, glass fiber reinforced plastic case is rugged, lightweight and corrosion-resistant
  • Uses Q298B linkage





Standard/Approvals: UL E4436

Application: Residential or Commercial HVAC Equipment



Products specifications
Attribute nameAttribute value
Control Signal2/10 VDC
Dimensions4-1/2 Inch H x 5 Inch W x 5-3/16 Inch D
Electrical ConnectionQuick Connect
Fail Safe ModeSpring Return
ManufacturerHoneywell
MaterialPlastic Housing
Motor TypeSynchronous
Power Consumption8 VA Driving, 3 VA Holding
SeriesM7215A
Stroke90 deg
Timing90 sec
Torque Rating25 Inch-lb
TypeFoot Mount
Voltage Rating24 VAC, 60 Hz, 8.7 VA
